Pyramid Box Template

A pyramid on any base from a triangle to a twelve-sided polygon. Party favours, gift boxes, display pieces.

Pyramid — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

The pyramid template, flat and folded

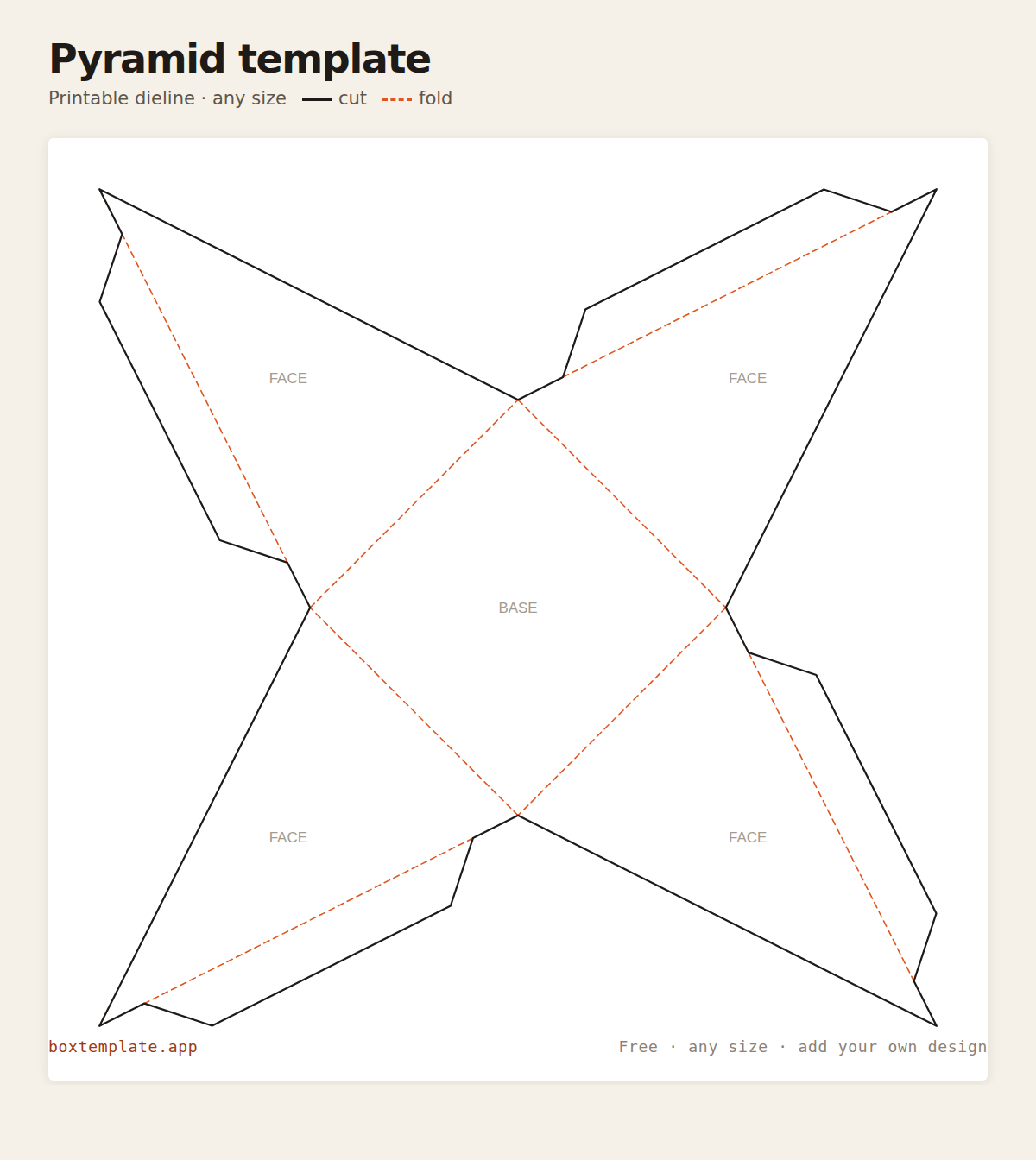

Pyramid template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size: 199 × 199 mm flat.

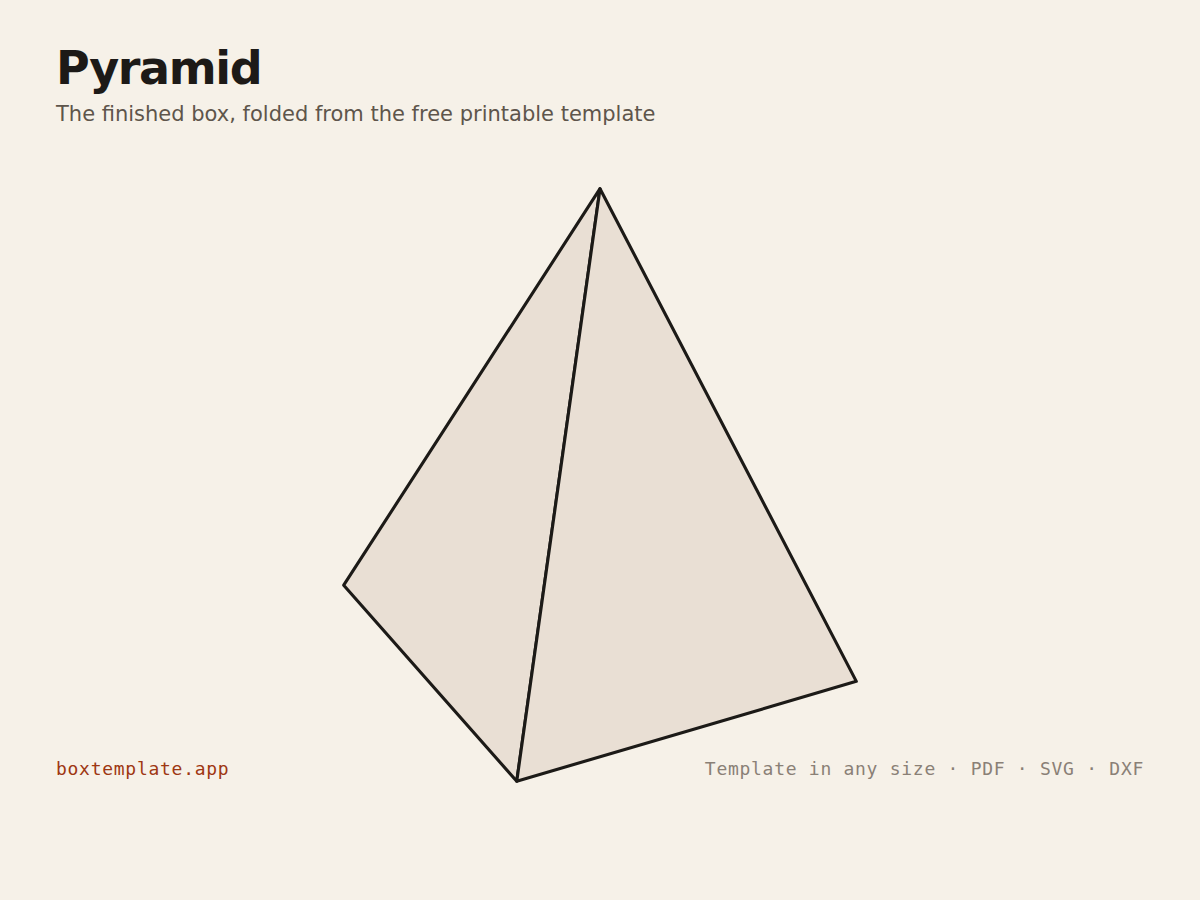

Pyramid folded up from the template — the finished box
The finished pyramid, 70 × 100 mm.

What this template is for

A pyramid on any base from a triangle to a twelve-sided polygon. Party favours, gift boxes, display pieces.

Also called polygonal pyramid · triangular gift box · pyramid carton

What size pyramid do I need?

The same pyramid does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.

UseSizeHolds
Favour boxNumber of sides 4 · base side length 50 mm · height 50 mmSweets or a small gift
Great Pyramid modelNumber of sides 4 · base side length 100 mm · height 64 mmThe Giza proportions, for a school project
Triangular pyramidNumber of sides 3 · base side length 80 mm · height 80 mmGeometry lessons and dice

The pyramid at a glance

Standard sizeBase side length × Height: 70 × 100 mm (2.8 × 3.9 in)
Number of sides4
Flat sheet at that size199 × 199 mm (7.8 × 7.8 in)
Prints onA4: one sheet · US Letter: one sheet · A3: one sheet
Biggest on one sheet of A470 × 100 mm (2.8 × 3.9 in)
Biggest on one sheet of US Letter72 × 103 mm (2.8 × 4.1 in)
GlueYes
Drawn forHeavy cardstock, 350–450 gsm / cereal-box card (0.5 mm)

Printing it

At its standard size the pyramid prints on one sheet of A4 or US Letter. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it

How to put it together

Drawn from the pyramid template itself; words in capitals are printed on it.

  1. Cut the solid lines

    Solid lines are cuts: inside shapes first.

  2. Score every dashed line

    Dashed lines are folds: score them first so the card does not crack.

  3. FACEFACEFACEFACEBASE

    Step by step

    1. Cut the outline: the BASE with a FACE on every edge.
    2. Fold every FACE up from the BASE and crease each glue tab along its line.
    3. Glue each tab behind the next FACE, going round, until only the last face is left.
    4. Fill it, then close the last face. To open it again later, tuck its tab inside instead of gluing it.

Glue: glue stick on paper, PVA on card.

Tip for this one: Fold every base edge up and crease each tab along its fold line, then glue each tab behind the next face. Fill it before you close the last face. For a box that opens again, leave the last tab unglued and tuck it inside the face next to it instead.

Questions about the pyramid

How tall can a pyramid be?

As tall as you like. The face height is worked out from the height and the base, so the faces always meet correctly at the point.

Which is the height — the slope or the middle?

The vertical height from the base to the point, not the slanted face. That is the measurement you would take with a ruler standing beside it.

How do I close it up?

Fold every base edge up and glue each tab behind the next face. Fill it before you close the last face.

What size pyramid do I need for favour box, great pyramid model or triangular pyramid?

Favour box: Number of sides 4 · base side length 50 mm · height 50 mm; Great Pyramid model: Number of sides 4 · base side length 100 mm · height 64 mm; Triangular pyramid: Number of sides 3 · base side length 80 mm · height 80 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
