BoxTemplate

Printable Polyhedron Nets

Printable nets for all five Platonic solids — cube, tetrahedron, octahedron, dodecahedron and icosahedron — at whatever edge length you need. Maths lessons, dice, decorations, models.

Polyhedron nets — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

The polyhedron nets template, flat and folded

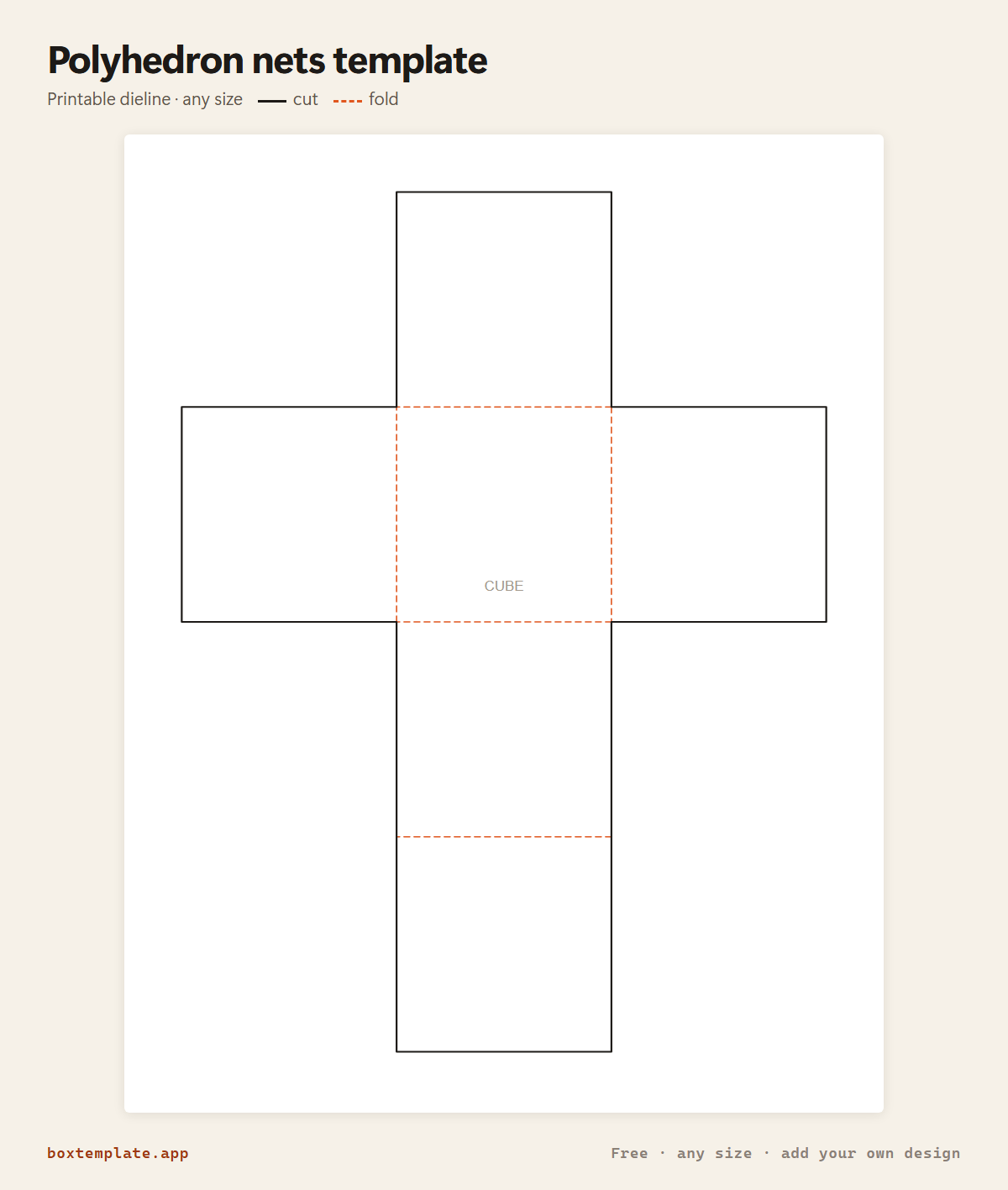

Polyhedron nets template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size: 120 × 160 mm flat.

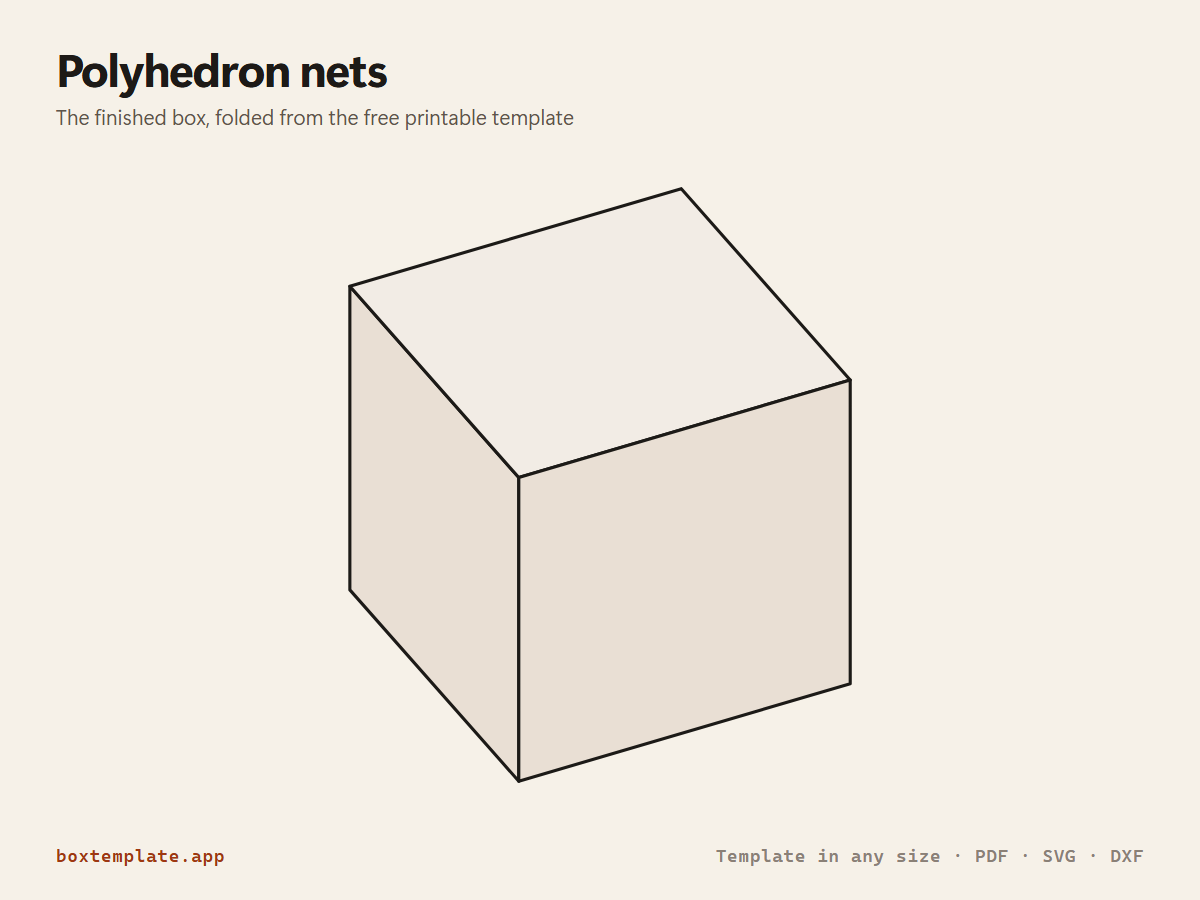

Polyhedron nets folded up from the template — the finished box
The finished polyhedron nets, 40 mm.

What this template is for

Printable nets for all five Platonic solids — cube, tetrahedron, octahedron, dodecahedron and icosahedron — at whatever edge length you need. Maths lessons, dice, decorations, models.

Also called platonic solids · paper dice net · cube net · geometry nets

  • Maths and geometry lessons
  • Paper dice and game pieces
  • Hanging decorations and ornaments
  • Model making and display

The polyhedron nets at a glance

Standard sizeEdge length: 40 mm (1.6 in)
Shape2
Flat sheet at that size120 × 160 mm (4.7 × 6.3 in)
Prints onA4: one sheet · US Letter: one sheet · A3: one sheet
Biggest on one sheet of A466 mm (2.6 in)
Biggest on one sheet of US Letter67 mm (2.6 in)
GlueYes
Drawn forHeavy cardstock, 350–450 gsm / cereal-box card (0.5 mm)

Printing it

At its standard size the polyhedron nets prints on one sheet of A4 or US Letter. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it

How to put it together

Drawn from the polyhedron nets template itself; words in capitals are printed on it.

  1. Cut the solid lines

    Solid lines are cuts: inside shapes first.

  2. Score every dashed line

    Dashed lines are folds: score them first so the card does not crack.

  3. CUBE

    Step by step

    1. Pick the shape, then cut out its net in one piece.
    2. Fold every crease both ways first; the shape then almost closes by itself.
    3. Fold it up and join each open edge with tape on the inside, or glue a narrow strip of card across the seam.
    4. Close the last face with your finger inside or a stick pushed through the last gap.

Glue: glue stick on paper, PVA on card.

Tip for this one: Cut the outline, score and fold every dashed line, then join the open edges with tape on the inside, or glue a narrow strip of card across each seam. Fold every crease both ways first and the shape almost closes itself. The dodecahedron is the big one: over about 33 mm each half is too big for A4 or Letter and needs A3 or bigger paper, since one piece is never split across sheets.

Questions about the polyhedron nets

What is a net?

The flat shape you cut out that folds up into a solid. A cube net, for instance, is six squares joined so they fold into a box — the classic one is a cross.

Why are there no glue tabs?

Because a plain net is unambiguously right, and tabs are the part that looks correct on screen and then fails in your hands. Join the open edges with a strip of tape on the inside, or glue a narrow strip of card across each seam.

Why does the dodecahedron come as two pieces?

Twelve pentagons in one flat layout is far bigger than a sheet of A4, so it comes as two halves of six, taped together round the middle. Even split it is the largest of the five: at the 40 mm default the pair stands 336 mm tall, so drop to 33 mm for A4, or 31 mm for Letter, or print it on A3. Every other solid, the twenty-faced icosahedron included, comes as one piece.

What edge length should I use?

The edge length is one side of one face, so a 40 mm cube edge gives a 40 mm cube. How large you can go before it stops fitting on one sheet of A4 depends on the solid: the tetrahedron takes 115 mm, the octahedron 76 mm, the cube 66 mm, the icosahedron 52 mm, and the dodecahedron only 33 mm. Four of the five print on one sheet at the 40 mm default; the dodecahedron is the exception and wants A3, or each half on its own sheet of A4.
