Cone Template
A full cone or a truncated one. Party hats, cone bags, megaphones, tapered pots — set the top diameter to zero for a point.
Cone — change shape
Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.
Advanced settingsunits, flaps, board, paper, lines
Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing
This shape has no 3D view yet. The template is still exact.
This shape's 3D view is only an approximation of the printed sheet, so it shows plain card. Your pictures still print exactly where you placed them on the template.
Drag to turn and tilt it; ctrl + scroll or the + and − buttons zoom.Swipe sideways to turn it. Two fingers tilt and pinch to zoom; full screen lets one finger do everything. Double-tap to reset. The fold starts from the very template you print, so gaps and loose tabs show.
Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.
Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

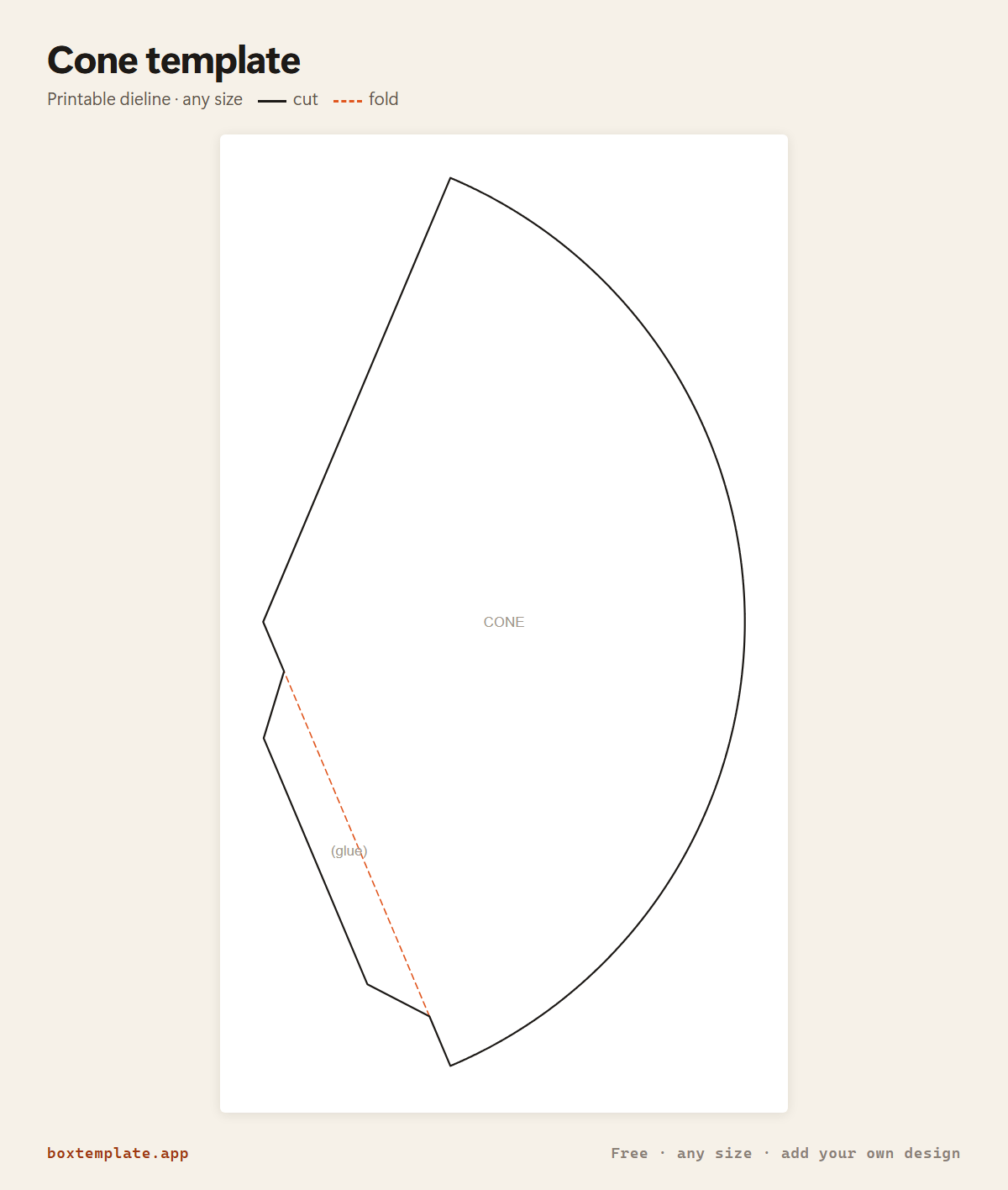

The cone template, flat and folded
What this template is for
A full cone or a truncated one. Party hats, cone bags, megaphones, tapered pots — set the top diameter to zero for a point.
Also called truncated cone · party hat template · cone bag · tapered tube
What size cone do I need?
The same cone does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.
| Use | Size (Bottom diameter × Top diameter (0 = point) × Height) | Holds |
|---|---|---|
| Party hat | Bottom diameter 170 mm · top diameter (0 = point) 0 mm · height 200 mm | A child’s or adult’s head, with elastic |
| Sweet or popcorn cone | Bottom diameter 80 mm · top diameter (0 = point) 0 mm · height 150 mm | A handful of sweets or popcorn |
| Table Christmas tree | Bottom diameter 150 mm · top diameter (0 = point) 0 mm · height 250 mm | A small tree to decorate |
| Plant pot cover | 100 × 80 × 100 mm | A 7–8 cm plant pot |
The cone at a glance
| Standard size | Bottom diameter × Top diameter × Height: 120 × 0 × 150 mm (4.7 × 0 × 5.9 in) |
|---|---|
| Flat sheet at that size | 162 × 298 mm (6.4 × 11.7 in) |
| Prints on | A4: too big at this size · US Letter: too big at this size · A3: one sheet |
| Biggest on one sheet of A4 | 115 × 0 × 144 mm (4.5 × 0 × 5.7 in) |
| Biggest on one sheet of US Letter | 108 × 0 × 136 mm (4.3 × 0 × 5.4 in) |
| Glue | Yes |
| Drawn for | Heavy cardstock, 350–450 gsm / cereal-box card (0.5 mm) |
Making cones: hats, bags and pots
A party hat that fits
Measure round the head where the hat will sit, divide by 3.14 and type that as the bottom diameter, with the top diameter at 0 for a point. A head of 56 cm gives about 178 mm. A height of 150 to 180 mm looks right for most party hats. Punch a hole each side near the rim for elastic.
Cone bags for sweets and popcorn
For a hand-held cone bag, set the bottom diameter (the open end) to 80 to 100 mm and the height to 180 to 220 mm: that holds a good handful. Line it with greaseproof paper for anything sticky; ordinary craft card is not made for direct food contact.
Truncated cones
Give the top diameter a value and the point is cut off: a tapered tube for a plant pot cover, a lamp shade, a megaphone or a cake-pop stand. The top is always the narrower end; for a cup or planter that flares out, make the cone and stand it on its narrow end.
Which paper
- Party hats: 160–220 gsm card rolls without creasing.
- Cone bags: 120–160 gsm paper or kraft.
- Pots and stands: 250–300 gsm card; curl it over a table edge first so it rolls evenly.
Mistakes to avoid
- Gluing the seam flat on a table. Roll the cone first, then glue the tab while the cone is round, holding it from the inside with a pencil.
- Measuring round the head and typing that as the diameter. The diameter is the distance round divided by 3.14; a 56 cm head typed as 560 mm gives a hat more than three times too big.
- Using glossy card with a glue stick. It does not hold on a gloss finish; use double-sided tape or white PVA.
Printing it
At its standard size the cone is too big for A4 or US Letter: print it on one sheet of A3, or make it smaller. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it
How to put it together
Drawn from the cone template itself; words in capitals are printed on it.
-
Cut the solid lines
Solid lines are cuts: inside shapes first.
-
Score every dashed line
Dashed lines are folds: score them first so the card does not crack.
-
Step by step
- Cut out the CONE.
- Curl it over a table edge first so it rolls evenly.
- Roll it up and glue the (glue) flap under the far straight edge.
Glue: glue stick on paper, PVA on card.
Tip for this one: Roll it up and glue the straight edge. Curl the paper over a table edge first and it will roll far more evenly.
Questions about the cone
How do I make a party hat?
Set the top diameter to zero for a point, the bottom diameter to the head size divided by pi (roughly the head circumference ÷ 3.14) and the height to how tall you want it.
Why does it say my cone is too wide?
A cone that is very wide and very short needs more than a full circle of paper, which cannot be cut from one flat sheet. Raise the height or reduce the bottom diameter.
What is a truncated cone?
One with the point cut off, which gives a tapered tube — a plant pot or a lampshade shape. Set a top diameter above zero.
What size cone do I need for party hat, sweet or popcorn cone or table christmas tree?
Party hat: Bottom diameter 170 mm · top diameter (0 = point) 0 mm · height 200 mm; Sweet or popcorn cone: Bottom diameter 80 mm · top diameter (0 = point) 0 mm · height 150 mm; Table Christmas tree: Bottom diameter 150 mm · top diameter (0 = point) 0 mm · height 250 mm; Plant pot cover: 100 × 80 × 100 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
