Round Box Template

A cylinder with a lid — cake boxes, hat boxes, gift tins. Comes as a wall strip with fixing tabs plus the discs.

Round box — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

The round box template, flat and folded

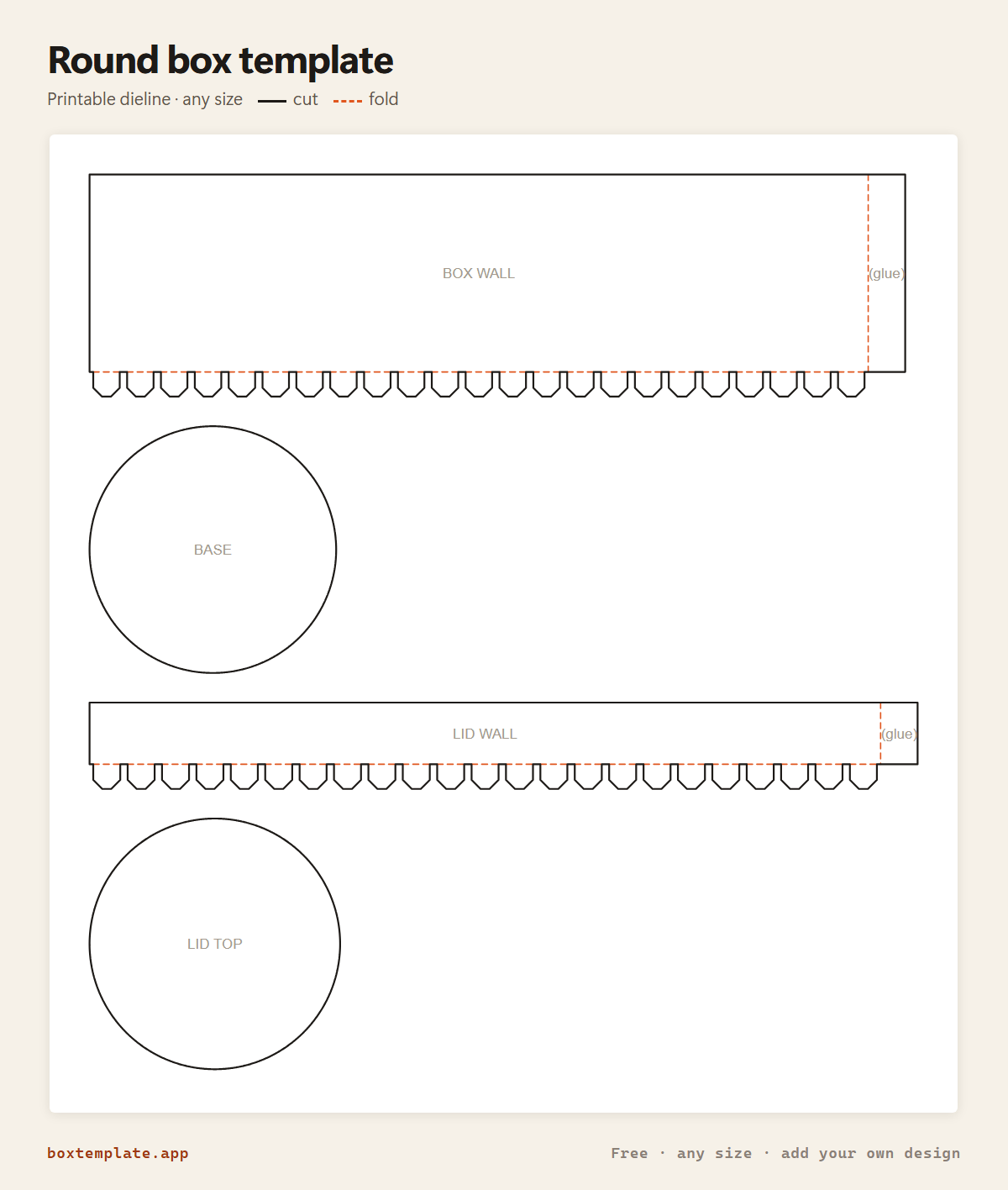

Round box template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size: 336 × 363 mm flat.

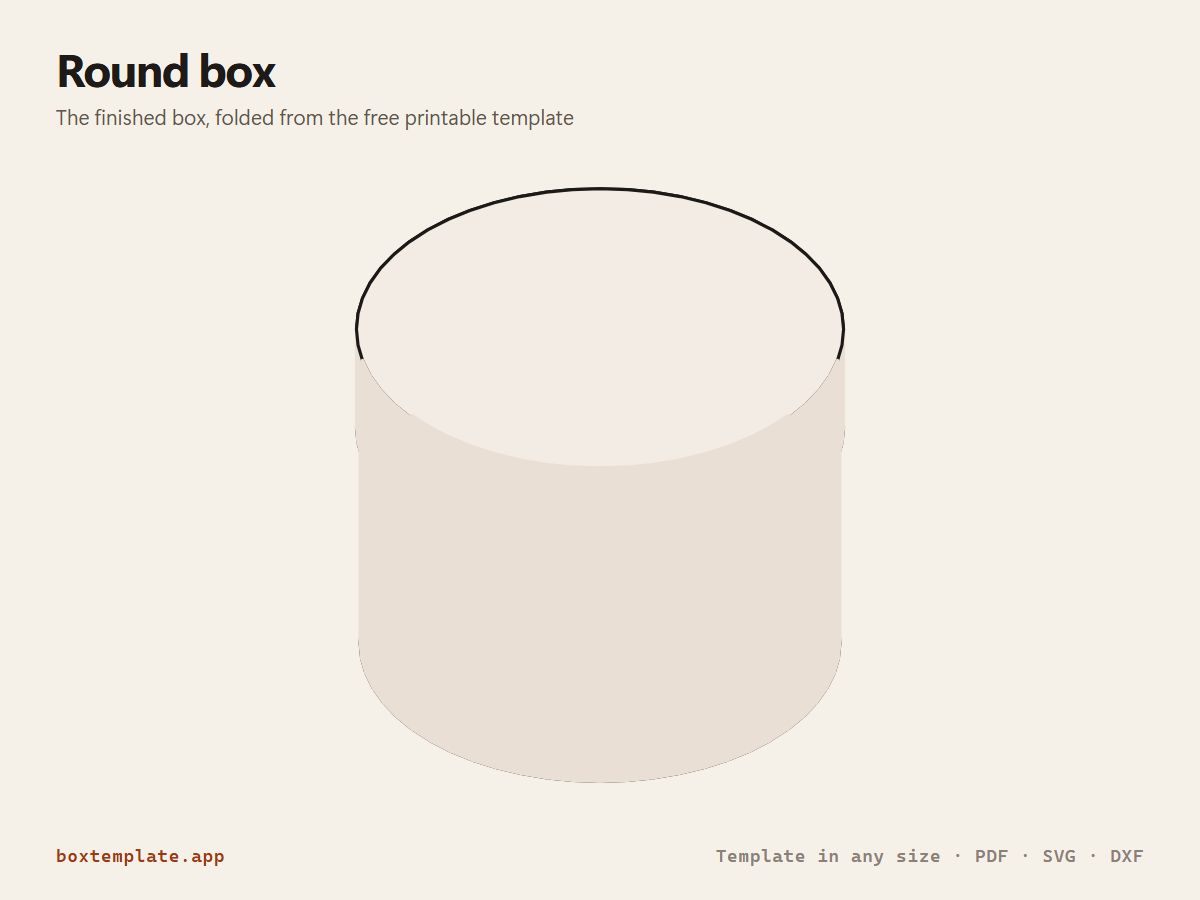

Round box folded up from the template — the finished box
The finished round box, 100 × 80 mm.

What this template is for

A cylinder with a lid — cake boxes, hat boxes, gift tins. Comes as a wall strip with fixing tabs plus the discs.

Also called cylinder box · hat box · round gift box · tube box with lid

What size round box do I need?

The same round box does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.

UseSize (Diameter × Height)Holds
Tea-light or votive candle75 × 75 mmA votive or a small candle tin
Single cupcake90 × 90 mmOne cupcake, up to about 70 mm across
Tea or coffee tube100 × 150 mm100–150 g of loose tea or ground coffee in a bag
Wine bottle tube85 × 330 mmA 75 cl wine bottle, about 76 mm across and 300 mm tall
Hat box300 × 180 mmA folded sun hat, scarves or keepsakes

The round box at a glance

Standard sizeDiameter × Height: 100 × 80 mm (3.9 × 3.1 in)
Flat sheet at that size336 × 363 mm (13.2 × 14.3 in)
Prints onA4: 2 sheets, each piece whole · US Letter: 2 sheets, each piece whole · A3: 2 sheets, each piece whole
Biggest on one sheet of A458 × 47 mm (2.3 × 1.9 in)
Biggest on one sheet of US Letter58 × 47 mm (2.3 × 1.9 in)
GlueYes
Drawn forHeavy cardstock, 350–450 gsm / cereal-box card (0.5 mm)

Making a round box that stays round

How it is built

A round box is a wall strip rolled into a tube, with small tabs along its bottom edge that fold in and hold the base disc, and a lid made the same way with a shorter wall. The diameter you type is the inside of the finished tube, so measure what goes in and add a few millimetres.

Which card

Thin card, 200–300 gsm, rolls into a smooth tube. Heavier card works if you curl the strip round a tin, a bottle or a rolling pin before gluing. Type the thickness into Material thickness so the strip length allows for it.

Sizes people make it in

  • Gift and favour boxes: 60 to 80 mm across, 40 to 60 mm high.
  • Cookie or truffle box: about 100 mm across, a stack of biscuits high plus 10 mm.
  • Hat box or round cake box: 200 to 250 mm across. A wall strip longer than the paper is printed in numbered sections that glue end to end.
  • Pencil pot: lid height 0, about 75 mm across and 100 mm high.

Getting a neat base

Fold every tab inwards before gluing, then sit the disc on them and glue them to it one by one, pressing each against a flat surface. A second disc of the same size, traced from the first and glued inside on top, hides the tabs and stiffens the floor.

Mistakes to avoid

  • A lid that will not go on: raise the lid clearance to 1 mm for thick or textured card.
  • A seam that springs open: hold it with clips or a rubber band while the glue dries.
  • Gluing the disc under the tabs. It sits on top of them, inside the tube.

Printing it

At its standard size the round box prints on 2 sheets of A4 or US Letter, each piece whole on its sheet, so there is nothing to tape. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it

How to put it together

Drawn from the round box template itself; words in capitals are printed on it.

  1. Cut the solid lines

    Solid lines are cuts: inside shapes first.

  2. Score every dashed line

    Dashed lines are folds: score them first so the card does not crack.

  3. BOX WALL(glue)BASELID WALL(glue)LID TOP

    Step by step

    1. Cut out the BOX WALL strip and the BASE disc, plus the LID WALL and LID TOP if you set a lid.
    2. Curl the wall over a table edge so it rolls evenly, then glue it into a tube with the (glue) end tab inside.
    3. Fold the little tabs round the bottom inwards.
    4. Sit the BASE disc on the tabs from inside and glue each tab to it.
    5. Make the lid the same way and put it on.

Glue: glue stick on paper, PVA on card.

Tip for this one: Roll the wall into a tube and glue the end. Fold the little tabs inwards, sit the disc on them and glue each tab to it.

Questions about the round box

What are all the little tabs for?

They fold inwards along the bottom of the wall. The disc sits on them and each tab is glued to it, which holds the base square and flat.

Why is the wall longer than the diameter times pi?

Because the board has thickness. The strip is measured round the middle of the board rather than the inside, so the finished tube is the diameter you asked for.

Can I make just a tube with no lid?

Set the lid height to zero and you get the wall and base only.

What size round box do I need for tea-light or votive candle, single cupcake or tea or coffee tube?

Tea-light or votive candle: 75 × 75 mm; Single cupcake: 90 × 90 mm; Tea or coffee tube: 100 × 150 mm; Wine bottle tube: 85 × 330 mm; Hat box: 300 × 180 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
