Card Box Template

The everyday folding carton — four walls, tuck flaps at both ends and dust flaps to keep them shut. Soap, tea, cosmetics, board-game boxes.

Card box — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

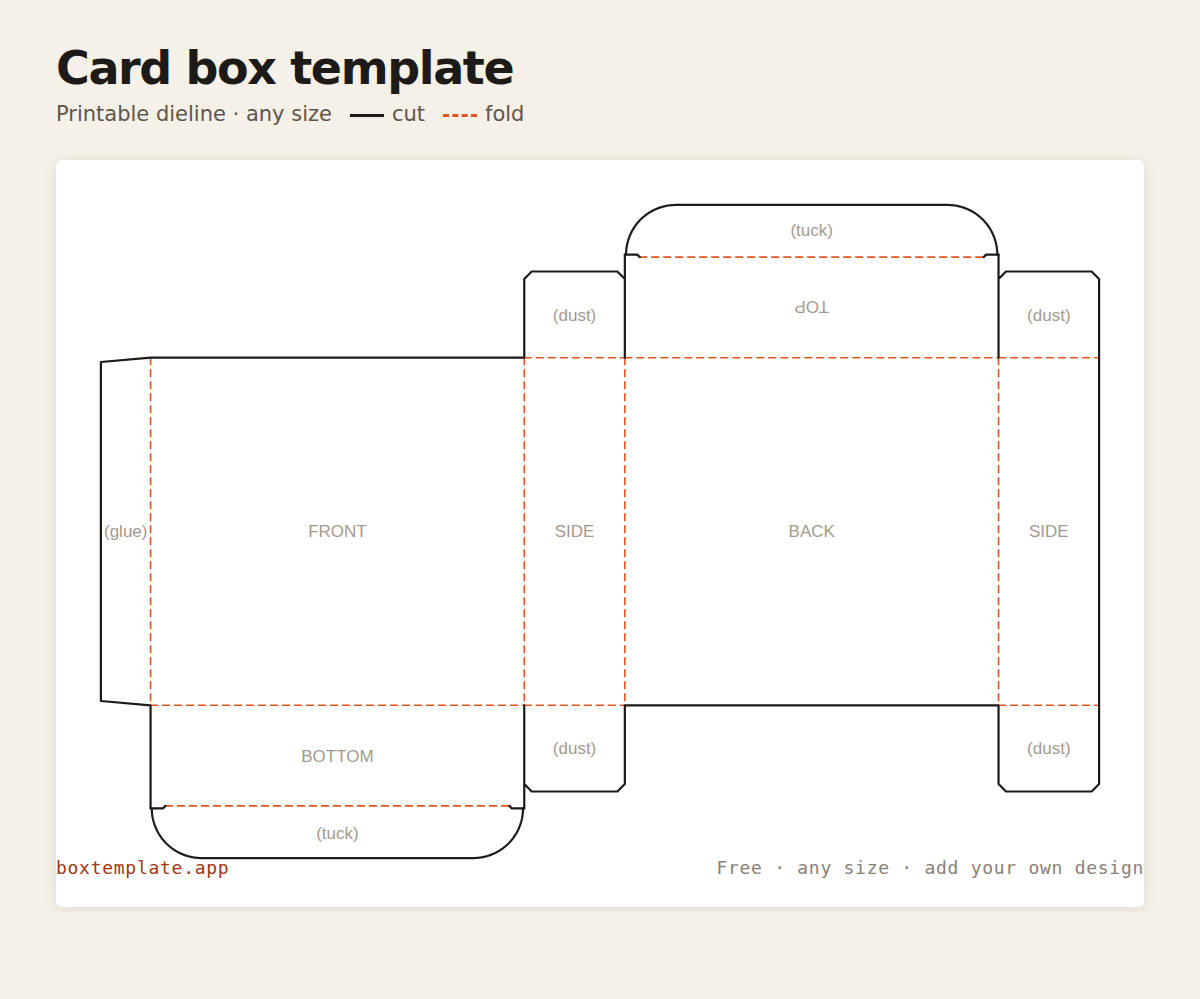

The card box template, flat and folded

Card box template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size: 402 × 263 mm flat.
Card box folded up from the template — the finished box
The finished card box, 150 × 40 × 140 mm.

What this template is for

The everyday folding carton — four walls, tuck flaps at both ends and dust flaps to keep them shut. Soap, tea, cosmetics, board-game boxes.

Also called reverse tuck end carton · RTE box · folding carton · tuck end box · ECMA A20.20.03.01

What size card box do I need?

The same card box does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.

UseSize (Length × Depth × Height)Holds
Lipstick26 × 26 × 90 mmA lipstick or lip balm tube, about 22 × 85 mm
Perfume 30 ml45 × 45 × 110 mmA 30 ml perfume or serum bottle
Soap bar95 × 65 × 30 mmA 100–125 g bar, about 90 × 60 × 25 mm
Tea bags140 × 70 × 75 mm25 tea bags standing in two rows
Candle jar85 × 85 × 105 mmA 20–30 cl candle jar, about 80 mm across and 100 mm tall
Mug125 × 90 × 100 mmAn 11 oz mug: 82 mm across, 95 mm tall, 120 mm with the handle

The card box at a glance

Standard sizeLength × Depth × Height: 150 × 40 × 140 mm (5.9 × 1.6 × 5.5 in)
Flat sheet at that size402 × 263 mm (15.8 × 10.4 in)
Prints onA4: too big at this size · US Letter: too big at this size · A3: one sheet
Biggest on one sheet of A4104 × 27 × 97 mm (4.1 × 1.1 × 3.8 in)
Biggest on one sheet of US Letter97 × 26 × 91 mm (3.8 × 1 × 3.6 in)
GlueYes
Drawn forHeavy cardstock, 350–450 gsm / cereal-box card (0.5 mm)

Printing it

At its standard size the card box is too big for A4 or US Letter: print it on one sheet of A3, or make it smaller. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it

How to put it together

Drawn from the card box template itself; words in capitals are printed on it.

  1. Cut the solid lines

    Solid lines are cuts: inside shapes first.

  2. Score every dashed line

    Dashed lines are folds: score them first so the card does not crack.

  3. (glue)FRONTSIDEBACKSIDETOPBOTTOM(tuck)(tuck)(dust)(dust)(dust)(dust)

    Step by step

    1. Cut the outline. If you set a window border, cut the opening in the FRONT and tape acetate behind it before you fold.
    2. Fold the four walls round and glue the (glue) flap to the inside of the far SIDE panel, making a flat tube. Let it dry.
    3. Open the tube out square. At the bottom, fold the two (dust) flaps in, then close the BOTTOM and push its (tuck) flap inside.
    4. Fill the box.
    5. At the top, fold the (dust) flaps in, close the TOP and push its (tuck) flap inside.

Glue: glue stick on paper, PVA on card.

Tip for this one: Glue the narrow flap to the far side panel to make a tube. Fold the dust flaps in first, then push each tuck flap inside. If you set a window border, cut the opening out before you fold anything, and tape a piece of acetate or cellophane over it on the inside — the frame is thin, and it tears far more easily once the box has been creased.

Questions about the card box

What is a reverse tuck carton?

The top flap folds from the back panel and the bottom flap from the front panel. It uses less board than a straight tuck and is the layout most shop cartons use.

Do I need glue?

Only one seam — the narrow flap down the side. Everything else tucks. White PVA or a glue stick both work on card.

Can I print my own design on it?

Yes. Add a picture in the Artwork panel, drag it where you want it, and it is trimmed to the outline so nothing prints off the card.

What size card box do I need for lipstick, perfume 30 ml or soap bar?

Lipstick: 26 × 26 × 90 mm; Perfume 30 ml: 45 × 45 × 110 mm; Soap bar: 95 × 65 × 30 mm; Tea bags: 140 × 70 × 75 mm; Candle jar: 85 × 85 × 105 mm; Mug: 125 × 90 × 100 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
