Box With Lid Template

Two nesting trays — a base and a slightly larger lid that slides over it. The classic gift and shirt box.

Box with lid — change shape

Units
Dimensions
Optional parameters
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

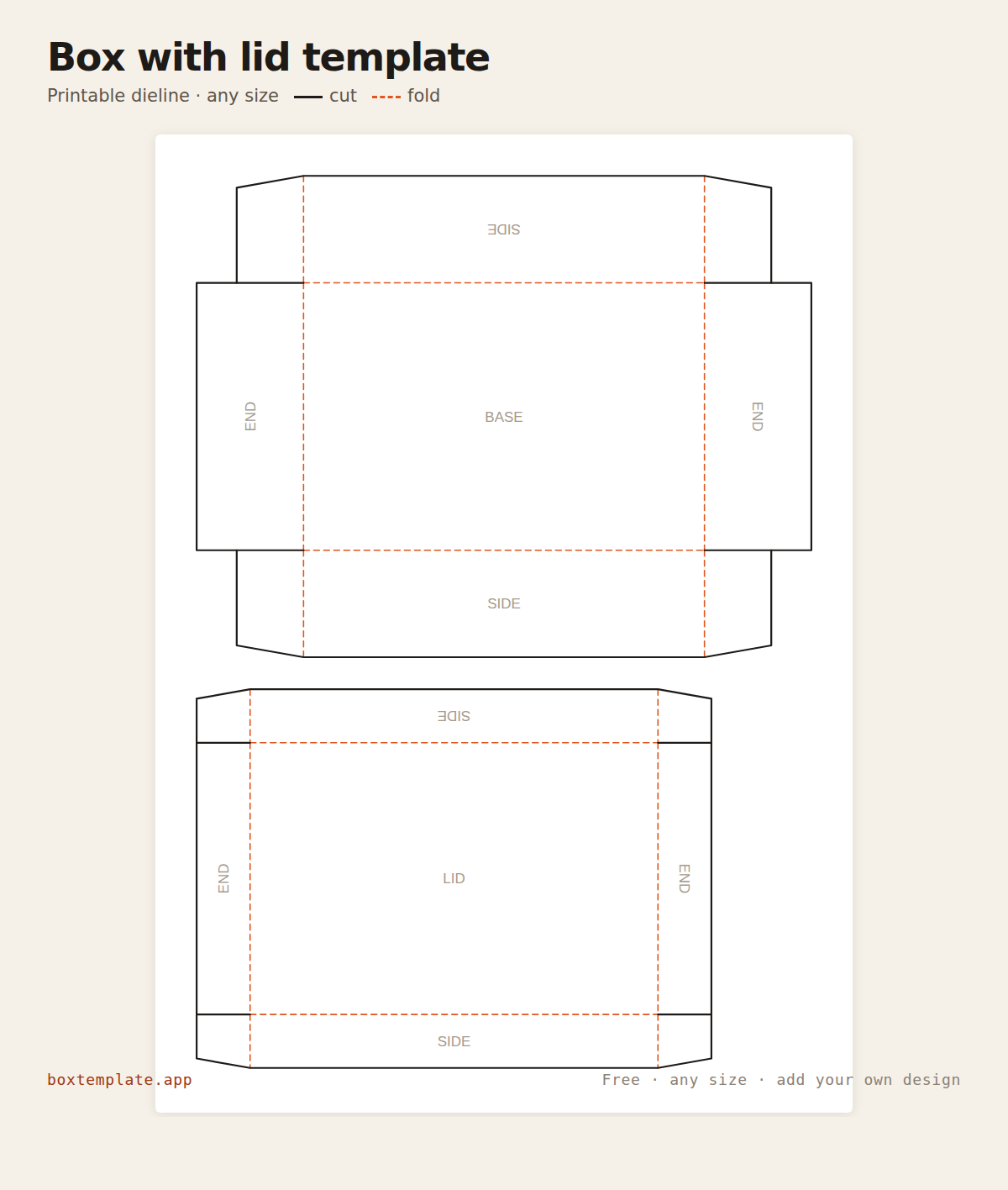

The box with lid template, flat and folded

Box with lid template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size. Type your own size above for yours.

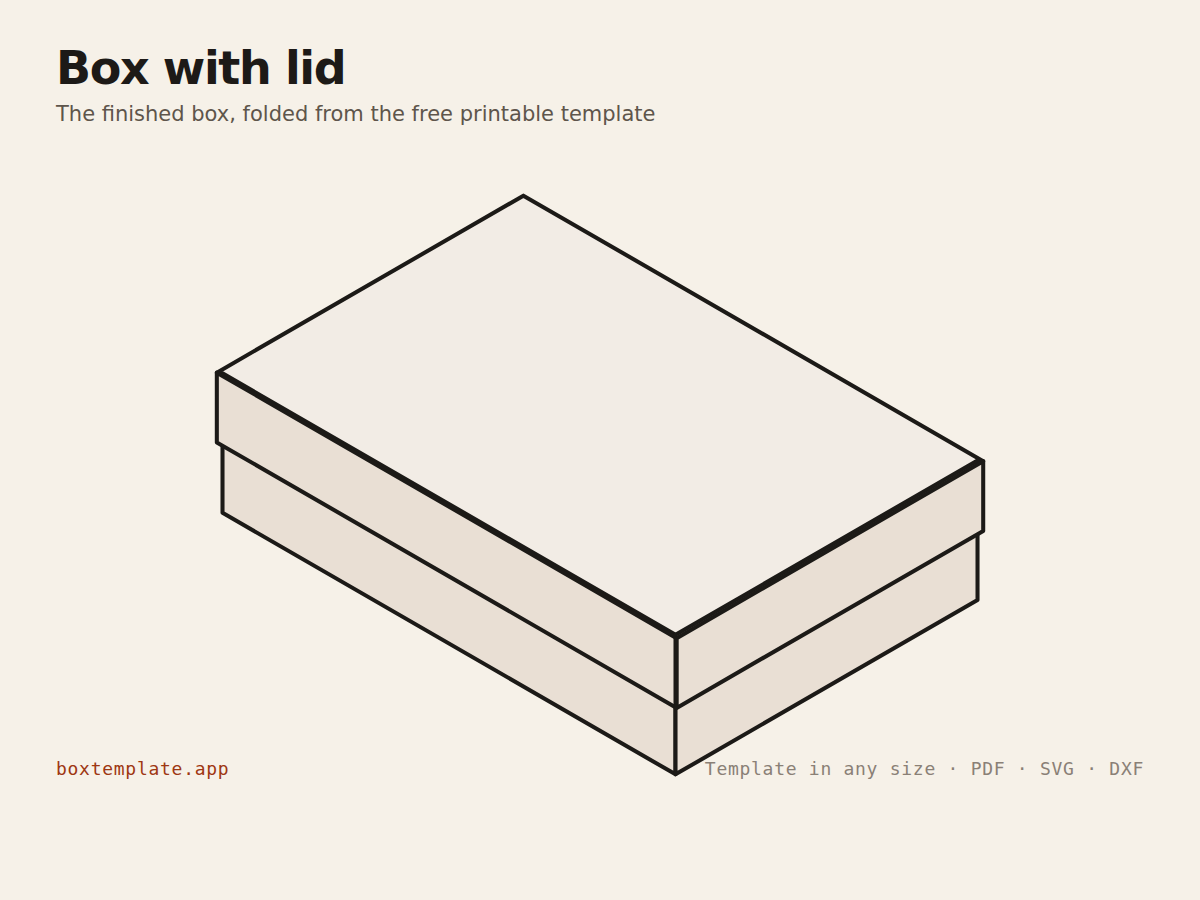

Box with lid folded up from the template — the finished box
The box it folds into.

What this template is for

Two nesting trays — a base and a slightly larger lid that slides over it. The classic gift and shirt box.

Also called two-piece box · base and lid box · lift-off lid box · shirt box — all the same shape, and this is it.

How to use this template

All four downloads are the same box with lid at the same size — only the format changes.

PDF printing at home
Print at 100 per cent, or hand it to a print shop as "actual size, no scaling".
PNG 300 dpi Canva, Photoshop, Procreate
Upload, lock it in place and design your box with lid on top. Free plan and phone included. Full Canva walkthrough →
SVG Cricut, Illustrator, Inkscape, Affinity
Vector, with cuts, folds and labels on separate layers. Cricut and Silhouette walkthrough →
DXF Silhouette, laser and vinyl cutters
Two layers, CUT and FOLD — and the one free Silhouette Studio Basic will open.

Getting it printed properly →

Printing it

  1. Type your size above, then download the PDF.
  2. Print at 100% — never “fit to page”, or every measurement comes out wrong.
  3. Too big for the paper? Pick your paper size and leave Fit the pieces to the page ticked: each piece gets its own place on a sheet and the PDF comes out with every page in it, nothing cut in half and nothing to tape.

How to put it together

These pictures are the box with lid itself, not a generic diagram — change the measurements above and the template changes, but the three steps never do.

  1. Cut the solid lines

    Every solid line is a cut. Do the inside shapes first, while the sheet is still whole and easy to hold.

  2. Score every dashed line

    Dashed lines are folds. Score each one first — an empty ballpoint against a ruler — or the card cracks along the outside of the bend.

  3. BASESIDESIDEENDENDLIDSIDESIDEENDEND

    Fold, glue and hold

    Build both trays the same way. The lid is already enlarged by the material thickness plus the clearance you set. If you set a window border, cut the opening out before you fold anything, and tape a piece of acetate or cellophane over it on the inside — the frame is thin, and it tears far more easily once the box has been creased.

Glue: a glue stick for paper, white PVA on card — hold each seam thirty seconds, and let the box dry standing up.

Questions about the box with lid

How much bigger is the lid?
The lid is enlarged by twice the material thickness plus the clearance you set, so it slides on without forcing. Raise the clearance a little for thick or textured board.
Why is the lid a separate piece?
A two-piece box is stronger and looks tidier than a hinged one, and both parts print flat. If you want a hinged lid, use the shallow box instead.
My lid is too tight. What do I change?
Increase the lid clearance by half a millimetre at a time. Check that the material thickness you entered matches your actual board.

Print your own design on it

Add a logo, photo or pattern in the panel on the left and drag it onto the box with lid. It is trimmed to the cut outline, embedded properly in the PDF, and never leaves your computer — most free template sites hand you the outline and stop there. How printing your own design works.
