Open Tray Template

A lidless tray: one bottom, four walls and a glue tab in every corner. Drawer inserts, seed trays, desk organisers.

Open tray — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

The open tray template, flat and folded

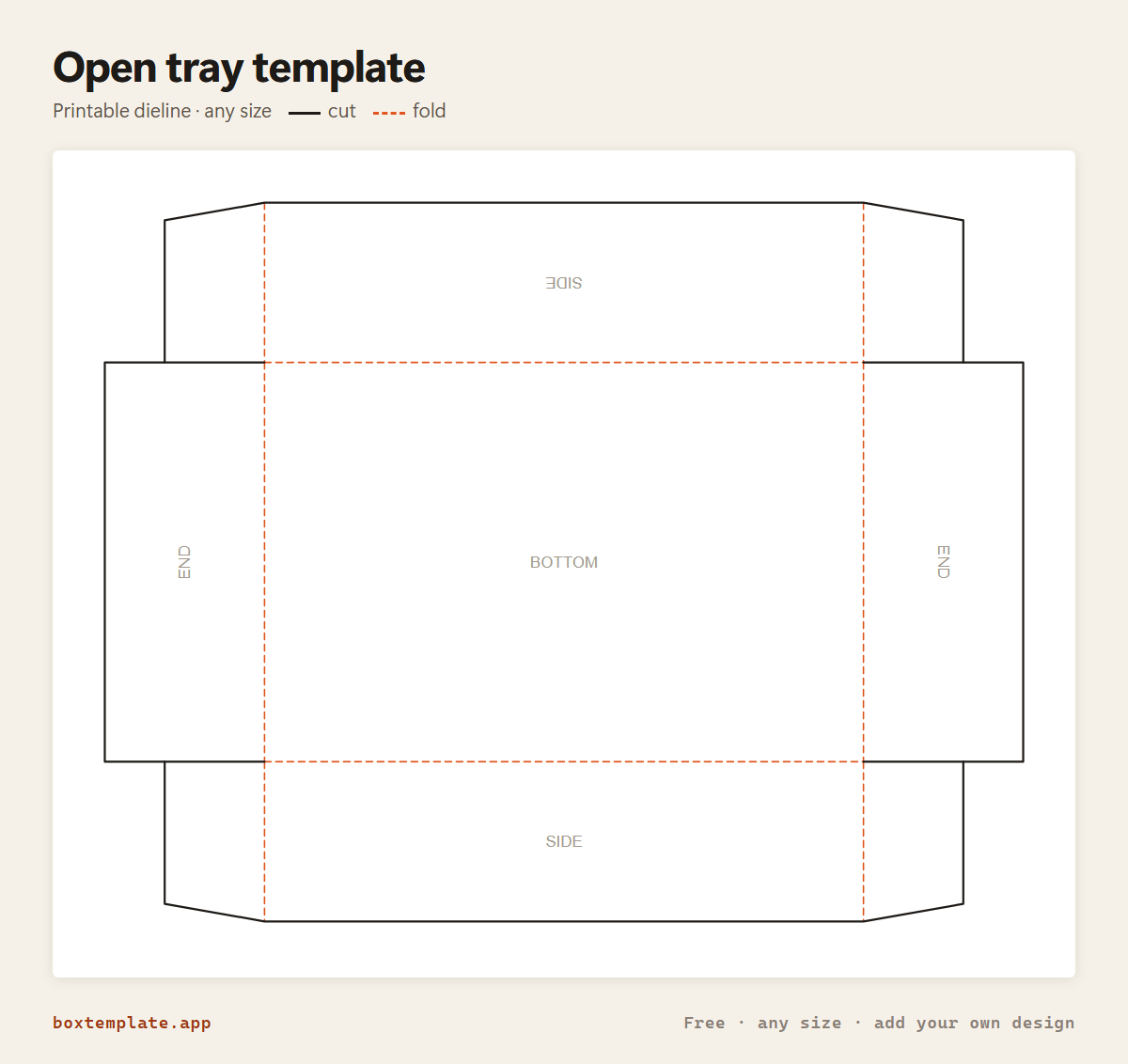

Open tray template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size: 230 × 180 mm flat.

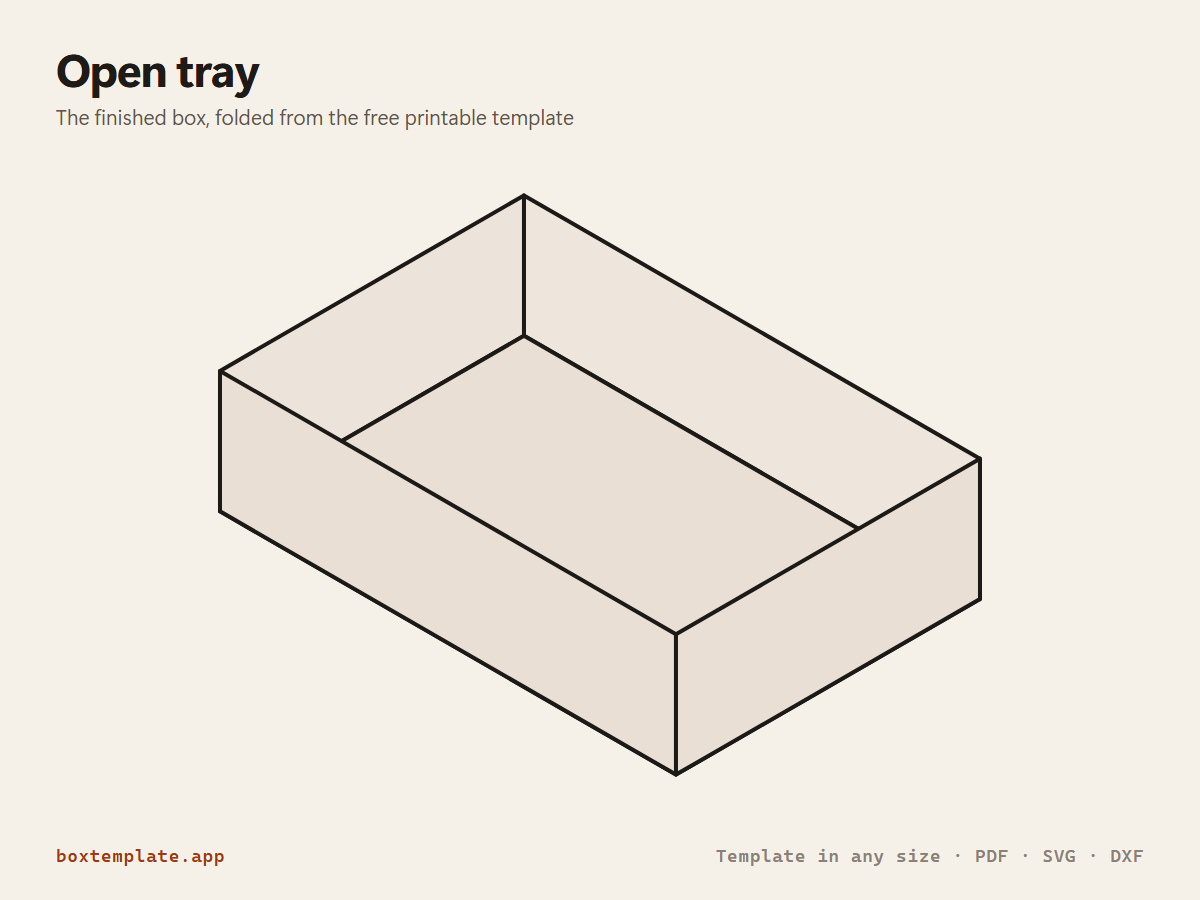

Open tray folded up from the template — the finished box
The finished open tray, 150 × 100 × 40 mm.

What this template is for

A lidless tray: one bottom, four walls and a glue tab in every corner. Drawer inserts, seed trays, desk organisers.

Also called tray insert · box insert · open-top tray · drawer organiser

What size open tray do I need?

The same open tray does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.

UseSize (Length × Width × Height)Holds
A4 paper tray310 × 222 × 40 mmA4 sheets (210 × 297 mm) lying flat
Drawer organiser230 × 75 × 50 mmPens, cutlery or tools side by side
Seed tray220 × 160 × 50 mmSeedlings and cuttings on a windowsill
Box insert100 × 70 × 25 mmSmall parts or samples inside a bigger box

The open tray at a glance

Standard sizeLength × Width × Height: 150 × 100 × 40 mm (5.9 × 3.9 × 1.6 in)
Flat sheet at that size230 × 180 mm (9.1 × 7.1 in)
Prints onA4: one sheet · US Letter: one sheet · A3: one sheet
Biggest on one sheet of A4168 × 112 × 44 mm (6.6 × 4.4 × 1.7 in)
Biggest on one sheet of US Letter172 × 114 × 45 mm (6.8 × 4.5 × 1.8 in)
GlueYes
Drawn forHeavy cardstock, 350–450 gsm / cereal-box card (0.5 mm)

Printing it

At its standard size the open tray prints on one sheet of A4 or US Letter. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it

How to put it together

Drawn from the open tray template itself; words in capitals are printed on it.

  1. Cut the solid lines

    Solid lines are cuts: inside shapes first.

  2. Score every dashed line

    Dashed lines are folds: score them first so the card does not crack.

  3. BOTTOMSIDESIDEENDEND

    Step by step

    1. Cut the outline: the four corners are notched out, leaving a tab on each end of the two SIDE walls.
    2. Fold the two SIDE walls and the two END walls up from the BOTTOM.
    3. Fold each corner tab round the corner and glue it to the inside of the END wall next to it.
    4. Hold each corner for thirty seconds and let the tray dry before you load it.

Glue: glue stick on paper, PVA on card.

Tip for this one: Fold the four walls up and glue each corner tab to the inside of the neighbouring wall.

Questions about the open tray

How do the corners work?

Each corner has a tab on the end wall. Fold the walls up and glue every tab to the inside of the wall next to it. The tabs are angled so they never foul the neighbouring wall.

Can I make a tray that fits inside a box I already have?

Yes — measure the inside of the box and take a millimetre or two off, then set the tray to that. Remember the board thickness adds up on both sides.

What is the difference between this and the box with lid?

The box with lid gives you two trays, a base and a slightly larger lid that slides over it. This one is the single tray on its own.

What size open tray do I need for a4 paper tray, drawer organiser or seed tray?

A4 paper tray: 310 × 222 × 40 mm; Drawer organiser: 230 × 75 × 50 mm; Seed tray: 220 × 160 × 50 mm; Box insert: 100 × 70 × 25 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
