Tapered Tub Template

Straight-sided box that opens out towards the top — chip boxes, popcorn boxes, plant pot covers, nesting storage.

Tapered tub — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

The tapered tub template, flat and folded

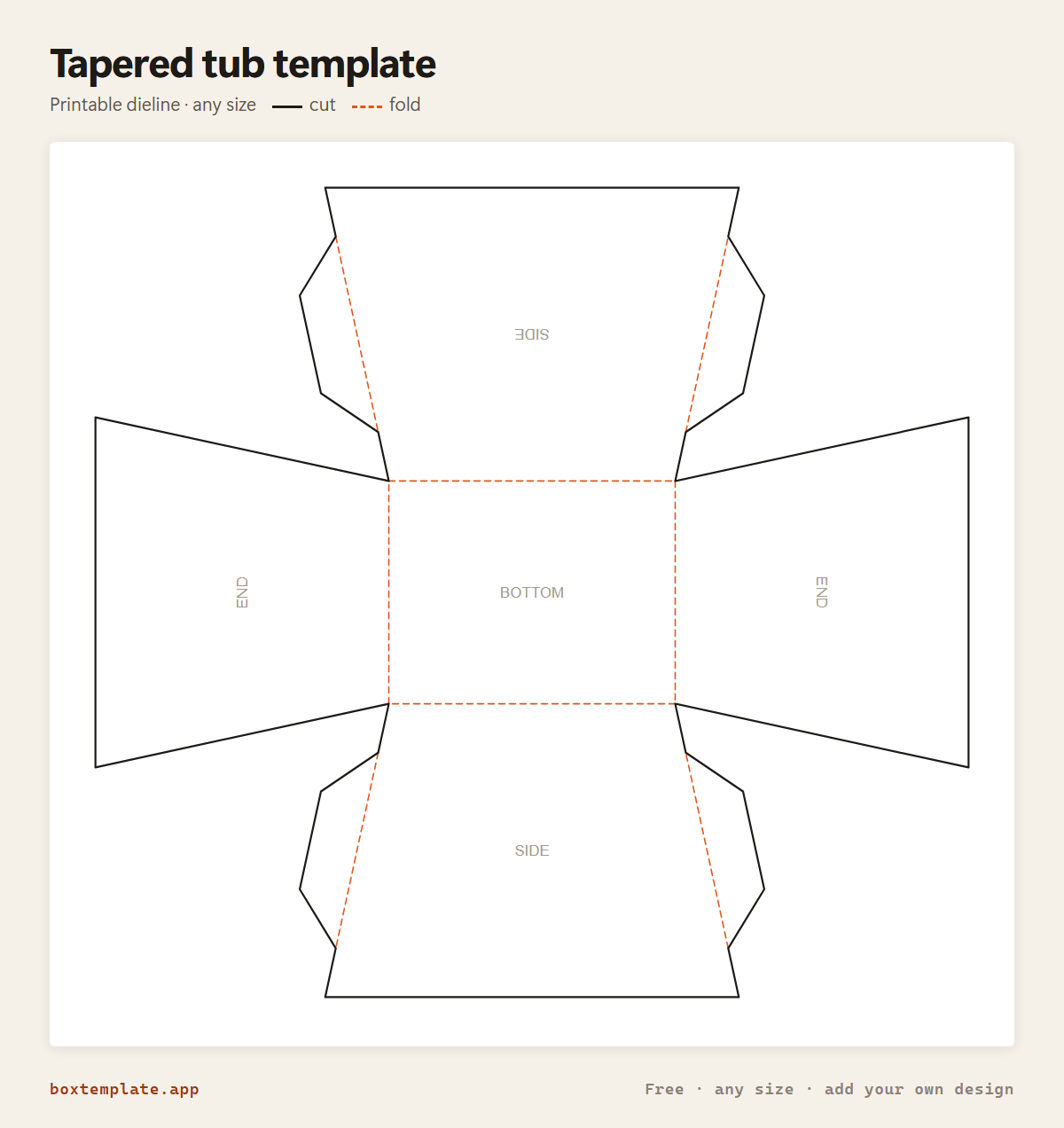

Tapered tub template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size: 274 × 254 mm flat.

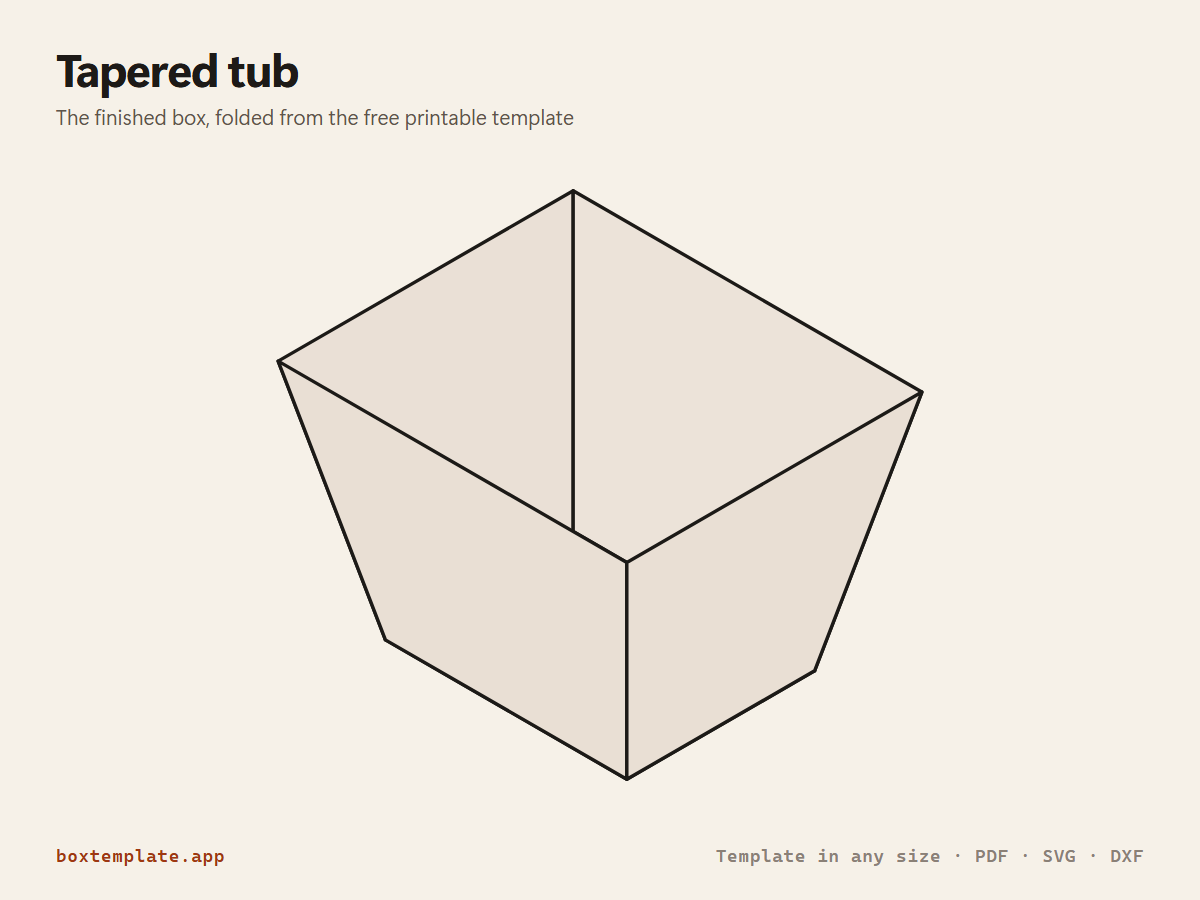

Tapered tub folded up from the template — the finished box
The finished tapered tub, 90 × 70 × 90 mm.

What this template is for

Straight-sided box that opens out towards the top — chip boxes, popcorn boxes, plant pot covers, nesting storage.

Also called nestable tray · tapered carton · chip box · popcorn box

The same box as the nestable tray. It cuts the identical dieline — the only difference is how you type the size: here you give the top opening directly; there you give a draft angle and it works the opening out, and tells you how far a stack grows per tray.

What size tapered tub do I need?

The same tapered tub does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.

UseSizeHolds
French friesBottom length 70 mm · bottom width 40 mm · height 100 mm · top length 100 mm · top width 70 mmA regular portion of fries or chips
PopcornBottom length 90 mm · bottom width 90 mm · height 150 mm · top length 130 mm · top width 130 mmA cinema-size popcorn serving
Plant pot coverBottom length 90 mm · bottom width 90 mm · height 90 mm · top length 110 mm · top width 110 mmA 9 cm square plant pot

The tapered tub at a glance

Standard sizeBottom length × Bottom width × Height: 90 × 70 × 90 mm (3.5 × 2.8 × 3.5 in)
Flat sheet at that size274 × 254 mm (10.8 × 10 in)
Prints onA4: too big at this size · US Letter: too big at this size · A3: one sheet
Biggest on one sheet of A468 × 52 × 68 mm (2.7 × 2 × 2.7 in)
Biggest on one sheet of US Letter70 × 55 × 70 mm (2.8 × 2.2 × 2.8 in)
GlueYes
Drawn forHeavy cardstock, 350–450 gsm / cereal-box card (0.5 mm)

Making a tapered tub that stands up and stacks

Which card

Use card between 250 and 350 gsm (about 0.3 to 0.45 mm). The walls lean outwards, so each one is held only along its bottom crease and its two glue tabs; thin paper bows inwards as soon as anything is put in it. A cereal-box weight card is about right for chips and popcorn, and the grey back of the card can face inwards.

Getting the shape right

The two numbers that set the look are the bottom and the top. A top about 40 mm wider than the bottom each way, as it opens, gives the classic chip-box flare. Push the top much wider and, past a certain slope, the four walls would overlap when laid out flat; the tool then eases the taper back to the steepest shape that can still be cut from one sheet, and says what it used.

Make the top smaller than the bottom and the walls lean in instead: a plant-pot cover or a desk tidy that is hard to knock over.

Stacking

Because the top is larger than the base, empty tubs of the same size nest inside one another. That makes them easy to store: fold a batch, stack them, and they take little more room than one.

Mistakes to avoid

  • Gluing the tabs outside the walls. They go behind the neighbouring wall, inside the tub, or the corners gape.
  • Leaving the glue wet when you fill it. Let the tabs dry upright for ten minutes first.
  • Putting greasy or wet food straight onto plain card. Line it with greaseproof paper; ordinary craft card is not made for direct food contact.

Printing it

At its standard size the tapered tub is too big for A4 or US Letter: print it on one sheet of A3, or make it smaller. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it

How to put it together

Drawn from the tapered tub template itself; words in capitals are printed on it.

  1. Cut the solid lines

    Solid lines are cuts: inside shapes first.

  2. Score every dashed line

    Dashed lines are folds: score them first so the card does not crack.

  3. BOTTOMSIDESIDEENDEND

    Step by step

    1. Cut the outline in one piece.
    2. Fold the four walls up from the BOTTOM. The two long SIDE walls carry the glue tabs.
    3. Glue each tab behind the END wall next to it, inside the tub.
    4. Let the tabs dry upright for ten minutes before you fill it.

Glue: glue stick on paper, PVA on card.

Tip for this one: Fold the four walls up; the two long walls carry the tabs. Glue each tab behind the neighbouring wall.

Questions about the tapered tub

Why did my top size change?

Past a certain slope the four walls overlap each other when laid out flat, so no template exists. The generator eases the taper back to the steepest shape that still works and tells you what it used.

Can the top be smaller than the bottom?

Yes. Enter a smaller top size and the walls lean inwards instead, which gives a plant-pot shape.

Will it hold food?

Only with a food-safe liner or greaseproof paper. Plain card is not a food-contact material.

What size tapered tub do I need for french fries, popcorn or plant pot cover?

French fries: Bottom length 70 mm · bottom width 40 mm · height 100 mm · top length 100 mm · top width 70 mm; Popcorn: Bottom length 90 mm · bottom width 90 mm · height 150 mm · top length 130 mm · top width 130 mm; Plant pot cover: Bottom length 90 mm · bottom width 90 mm · height 90 mm · top length 110 mm · top width 110 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
