Match Box Template

An inner drawer and an outer sleeve that it slides into. Give the size of the drawer — the sleeve is sized to match.

Match box — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

The match box template, flat and folded

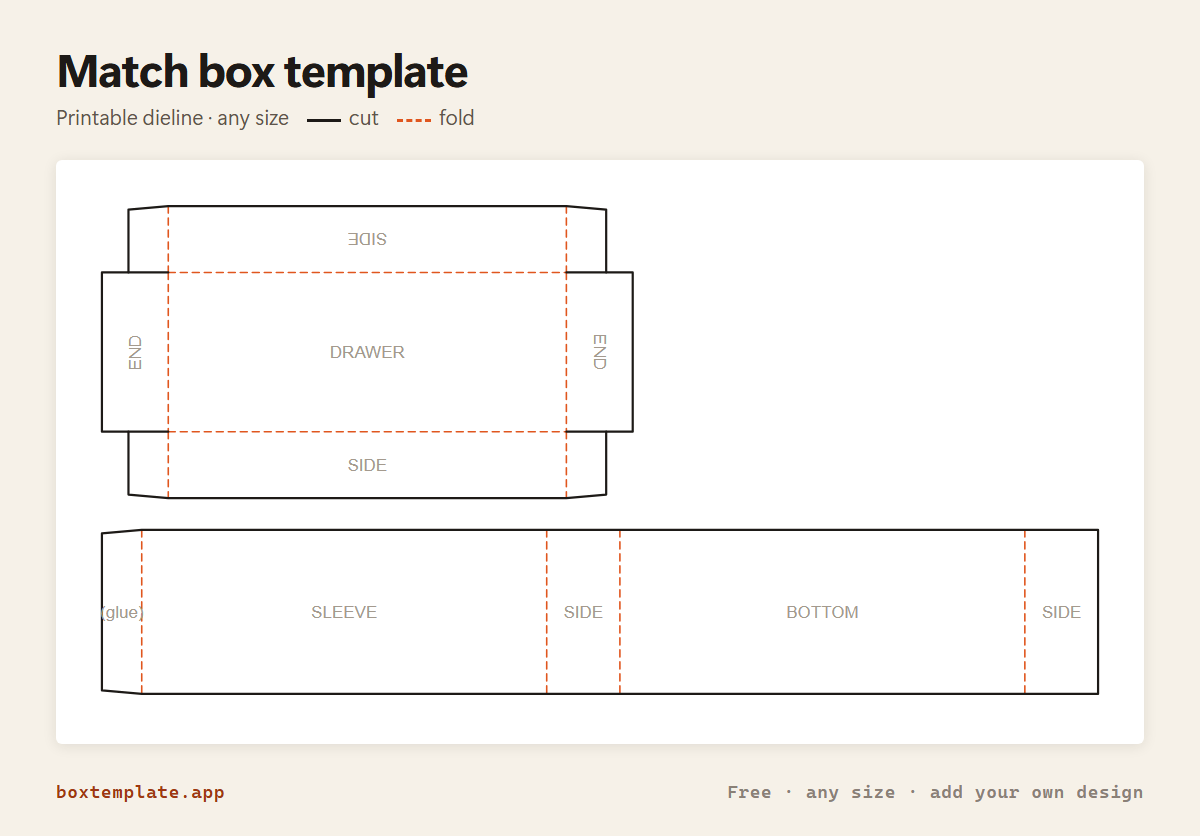

Match box template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size: 375 × 184 mm flat.

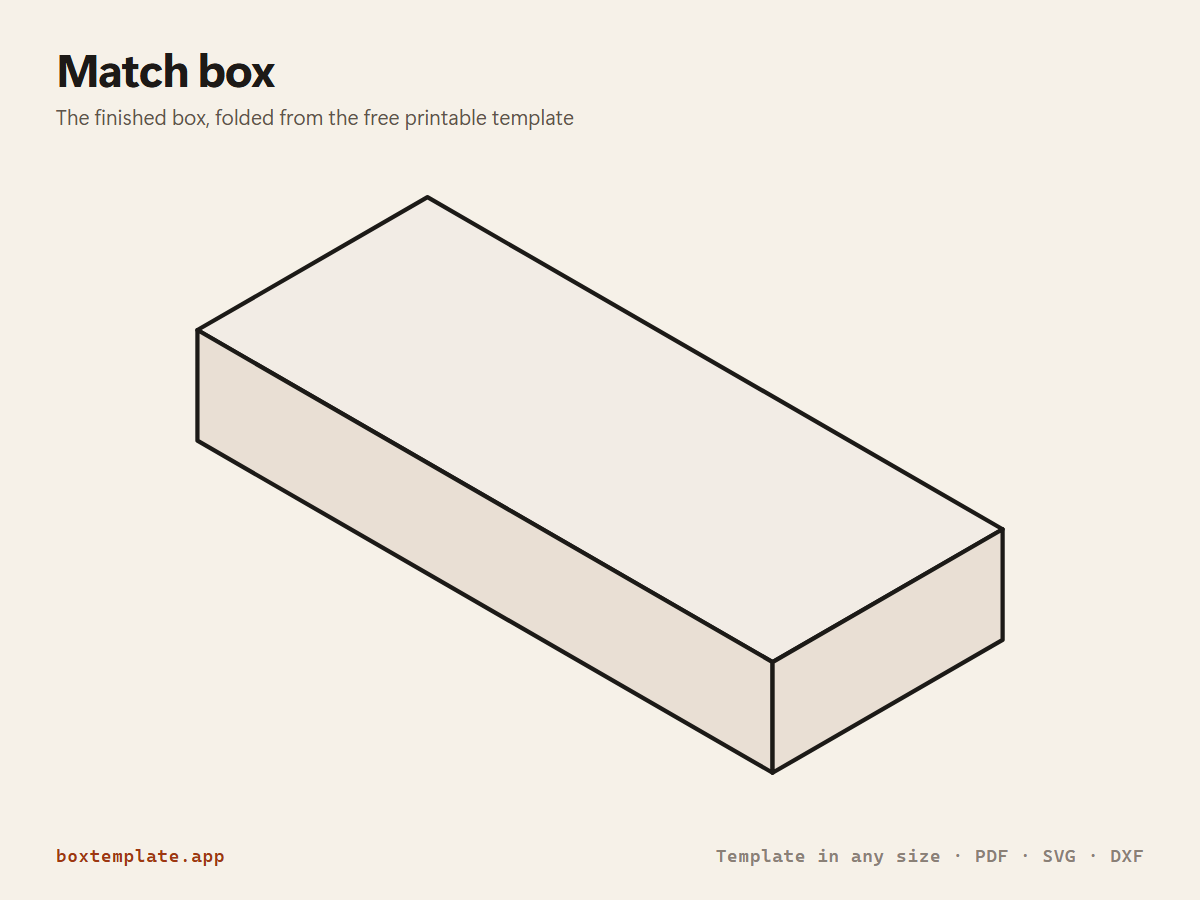

Match box folded up from the template — the finished box
The finished match box, 150 × 60 × 25 mm.

What this template is for

An inner drawer and an outer sleeve that it slides into. Give the size of the drawer — the sleeve is sized to match.

Also called drawer box · slide box · tray and sleeve carton · sliding box

What size match box do I need?

The same match box does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.

UseSize (Length × Width × Height)Holds
Matches55 × 36 × 15 mmStandard safety matches
Business cards92 × 58 × 25 mmAbout 50 cards, 85 × 55 mm
Ring or earrings60 × 60 × 30 mmA ring box that slides open
Chocolate bar160 × 80 × 15 mmA 100 g chocolate bar

The match box at a glance

Standard sizeLength × Width × Height: 150 × 60 × 25 mm (5.9 × 2.4 × 1 in)
Flat sheet at that size375 × 184 mm (14.8 × 7.2 in)
Prints onA4: one sheet · US Letter: one sheet · A3: one sheet
Biggest on one sheet of A4150 × 60 × 25 mm (5.9 × 2.4 × 1 in)
Biggest on one sheet of US Letter155 × 62 × 25 mm (6.1 × 2.4 × 1 in)
GlueYes
Drawn forHeavy cardstock, 350–450 gsm / cereal-box card (0.5 mm)

Printing it

At its standard size the match box prints on one sheet of A4 or US Letter. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it

How to put it together

Drawn from the match box template itself; words in capitals are printed on it.

  1. Cut the solid lines

    Solid lines are cuts: inside shapes first.

  2. Score every dashed line

    Dashed lines are folds: score them first so the card does not crack.

  3. DRAWERSIDESIDEENDEND(glue)SLEEVESIDEBOTTOMSIDE

    Step by step

    1. Cut out the DRAWER and the SLEEVE.
    2. Drawer: fold the two SIDE walls and two END walls up and glue the corner tabs inside the END walls, like a small tray.
    3. Sleeve: crease its four folds and wrap it round the finished drawer.
    4. Glue the (glue) flap under the last SIDE panel while the drawer is inside, so the sleeve sets to the drawer’s exact size.
    5. Slide the drawer out once the glue has dried, then back in.

Glue: glue stick on paper, PVA on card.

Tip for this one: Build the drawer like a tray. Roll the sleeve round it while the glue is still wet so the fit is right.

Questions about the match box

Which size do I enter?

The size of the drawer — the useful space inside. The sleeve is worked out from it, allowing for board thickness and the clearance you set.

How do I get the sliding fit right?

Roll the sleeve around the finished drawer while the glue is still wet, then let it dry in place. That gives a better fit than any calculation.

Can I make it without glue?

The drawer needs glue at its four corners and the sleeve needs one seam. Double-sided tape works if you would rather not use glue.

What size match box do I need for matches, business cards or ring or earrings?

Matches: 55 × 36 × 15 mm; Business cards: 92 × 58 × 25 mm; Ring or earrings: 60 × 60 × 30 mm; Chocolate bar: 160 × 80 × 15 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
