Polygonal Box Template
Any box from a triangle to a twelve-sided one. Set the lid height to zero for an open tub, or give it a height for a hat-box style lid.
Polygonal box — change shape
Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.
Advanced settingsunits, flaps, board, paper, lines
Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing
This shape has no 3D view yet. The template is still exact.
This shape's 3D view is only an approximation of the printed sheet, so it shows plain card. Your pictures still print exactly where you placed them on the template.
Drag to turn and tilt it; ctrl + scroll or the + and − buttons zoom.Swipe sideways to turn it. Two fingers tilt and pinch to zoom; full screen lets one finger do everything. Double-tap to reset. The fold starts from the very template you print, so gaps and loose tabs show.
Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.
Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

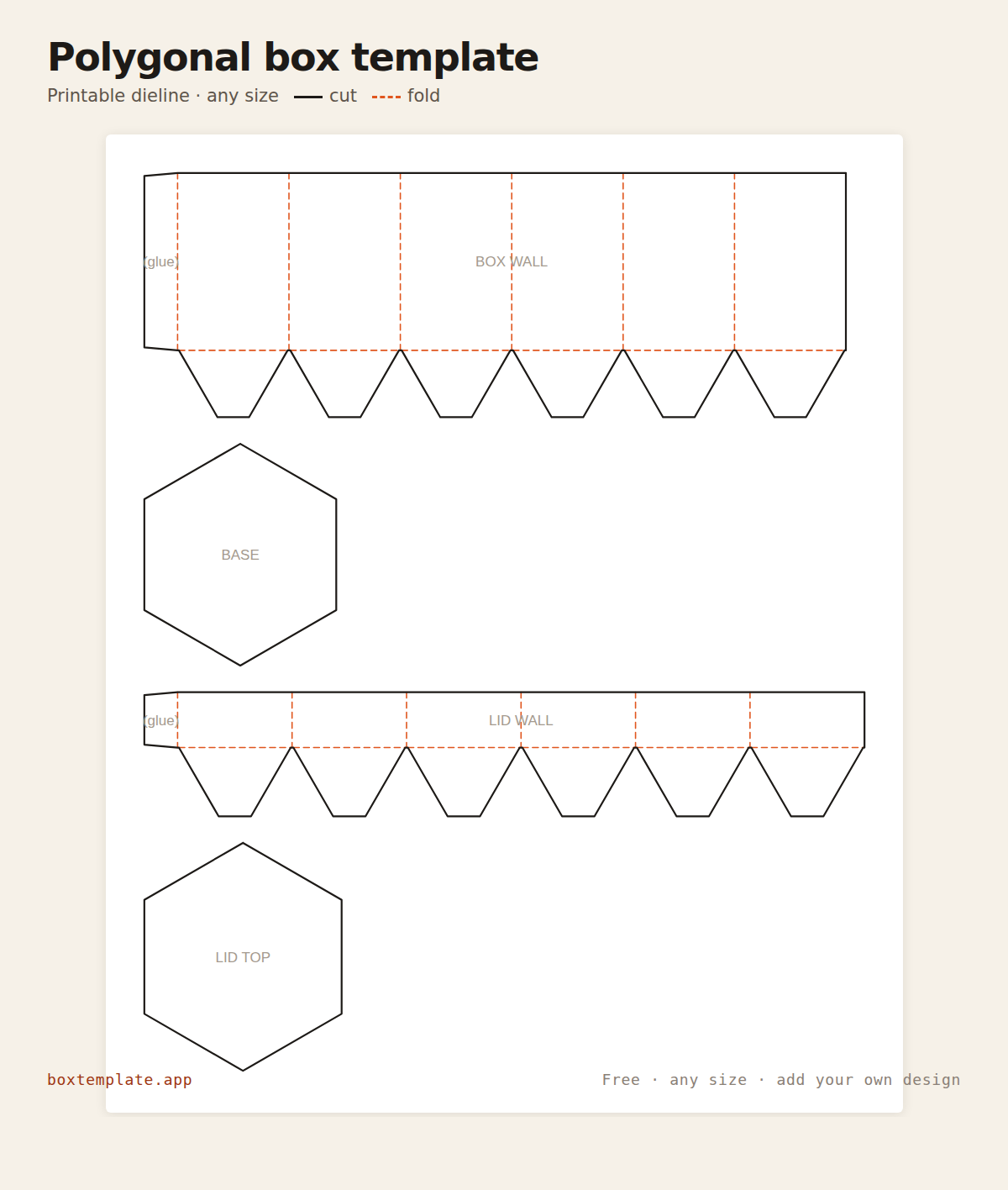

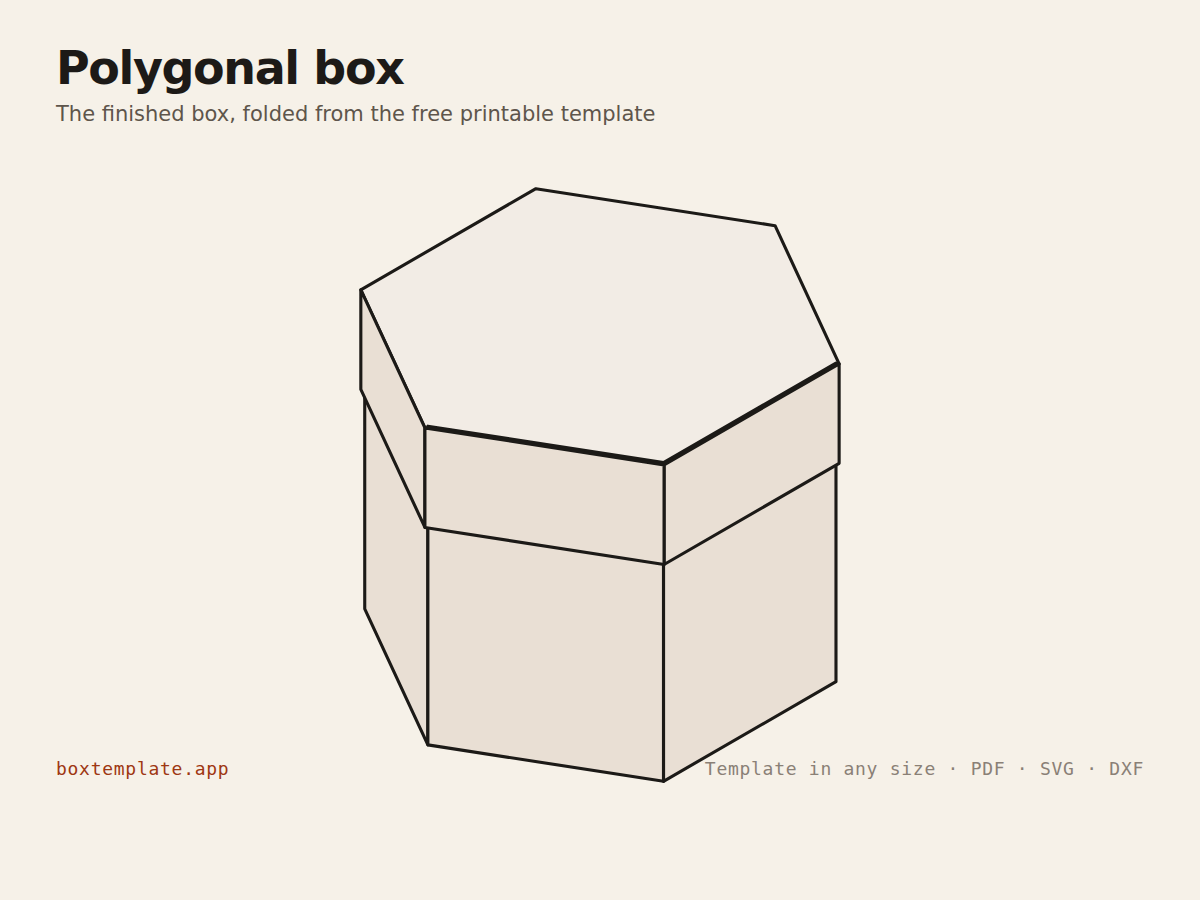

The polygonal box template, flat and folded


What this template is for
Any box from a triangle to a twelve-sided one. Set the lid height to zero for an open tub, or give it a height for a hat-box style lid.
Also called hexagonal box · octagonal box · prismatic box · polygon box with lid
What size polygonal box do I need?
The same polygonal box does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.
| Use | Size | Holds |
|---|---|---|
| Pentagon favour box | Number of sides 5 · side length 40 mm · height 50 mm | A few sweets or a small trinket |
| Hexagon candle box | Number of sides 6 · side length 50 mm · height 110 mm | A pillar candle up to about 80 mm across |
| Hexagon macaron box | Number of sides 6 · side length 35 mm · height 50 mm | Four to six macarons stacked |
| Octagon cake box | Number of sides 8 · side length 90 mm · height 120 mm | An 8 in (20 cm) round cake |
The polygonal box at a glance
| Standard size | Side length × Height: 50 × 80 mm (2 × 3.1 in) |
|---|---|
| Number of sides | 6 |
| Flat sheet at that size | 325 × 405 mm (12.8 × 15.9 in) |
| Prints on | A4: 3 sheets, each piece whole · US Letter: 3 sheets, each piece whole · A3: 2 sheets, each piece whole |
| Biggest on one sheet of A4 | 30 × 49 mm (1.2 × 1.9 in) |
| Biggest on one sheet of US Letter | 30 × 48 mm (1.2 × 1.9 in) |
| Glue | Yes |
| Drawn for | Heavy cardstock, 350–450 gsm / cereal-box card (0.5 mm) |
Making hexagon, octagon and other many-sided boxes
Choosing the size
The tool asks for the number of sides and the length of one side. For a hexagon, the width across opposite corners is twice the side length, so a 50 mm side makes a box 100 mm across the corners and about 87 mm across the flats. For any shape, the width across the flats is what has to fit round what goes inside.
How many sides
- Three: a triangular box, good for a slice of something or as a novelty.
- Five: a pentagon, stands out on a shelf.
- Six: the classic hexagon gift box, also good for honey and candles.
- Eight: an octagon, which reads as nearly round but folds with sharp, easy creases. A good stand-in for a round hat box if curved card gives you trouble.
- Ten to twelve: close to a cylinder, with more glue tabs to fold.
Which card
Use 250–300 gsm card for gift boxes, and score every fold: the wall strip has a crease at every corner and they all need to be crisp for the base to close flat. Type the card thickness into Material thickness.
Lid or no lid
Give the lid a height and you get a hat-box style lid that slips over the top, made larger by the lid clearance. A third of the box height looks balanced. Set it to zero for an open tub: pencil pots, plant pots, cupcake holders.
Mistakes to avoid
- Gluing the base disc first. Fold the bottom flaps in and glue them to one another, then glue the disc on top.
- Rolling the strip instead of folding it. Fold each corner crease sharply before gluing the strip into a ring.
Printing it
At its standard size the polygonal box prints on 3 sheets of A4 or US Letter, each piece whole on its sheet, so there is nothing to tape. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it
How to put it together
Drawn from the polygonal box template itself; words in capitals are printed on it.
-
Cut the solid lines
Solid lines are cuts: inside shapes first.
-
Score every dashed line
Dashed lines are folds: score them first so the card does not crack.
-
Step by step
- Cut out the BOX WALL strip and the BASE, plus the LID WALL and LID TOP if you set a lid.
- Crease the wall at every corner fold and along the line of small flaps at the bottom.
- Roll the wall into a ring and glue the (glue) end tab inside the first panel.
- Fold the bottom flaps in and glue them to one another, then glue the BASE on top of them from inside.
- Make the lid the same way from the LID WALL and LID TOP, and put it on.
Glue: glue stick on paper, PVA on card.
Tip for this one: Roll the wall strip up and glue the end tab inside the first panel. Fold the bottom flaps in and glue them to one another, then glue the base disc on top of them.
Questions about the polygonal box
How do I make a hexagonal box?
Set the number of sides to six and the side length to the length of one edge of the hexagon. For a hexagon, the width across opposite corners is twice the side length.
How does the bottom close?
Each wall panel has a flap. Fold them all inwards, glue them to one another, then glue the base disc on top for a clean finish.
How do I get a box with no lid?
Set the lid height to zero and you get the wall strip and base only.
What size polygonal box do I need for pentagon favour box, hexagon candle box or hexagon macaron box?
Pentagon favour box: Number of sides 5 · side length 40 mm · height 50 mm; Hexagon candle box: Number of sides 6 · side length 50 mm · height 110 mm; Hexagon macaron box: Number of sides 6 · side length 35 mm · height 50 mm; Octagon cake box: Number of sides 8 · side length 90 mm · height 120 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
