Pillow Box Template

The curved-end pillow box. No glue at the ends at all — the curves lock into each other.

Pillow pack — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

The pillow pack template, flat and folded

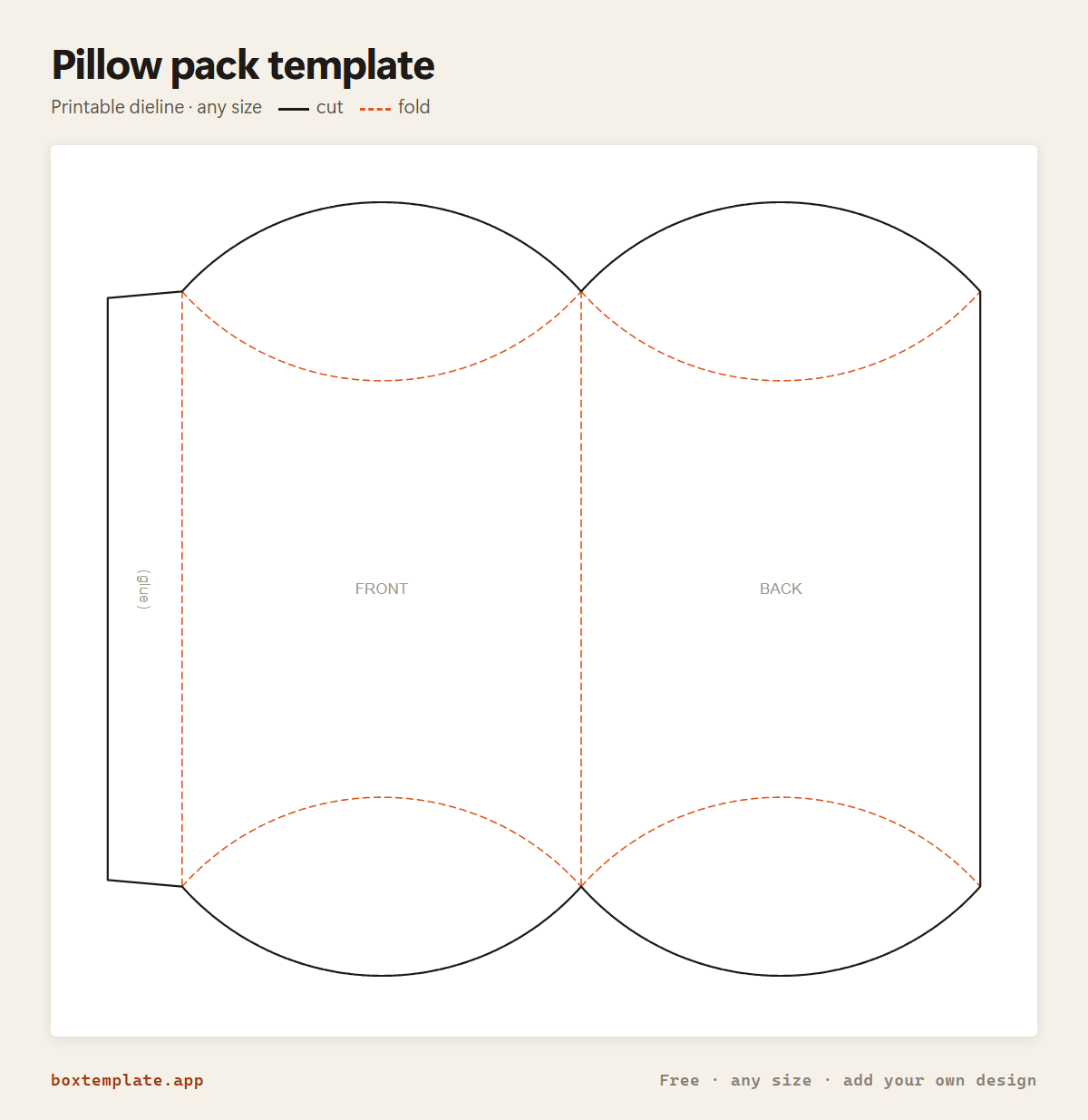

Pillow pack template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size: 176 × 156 mm flat.

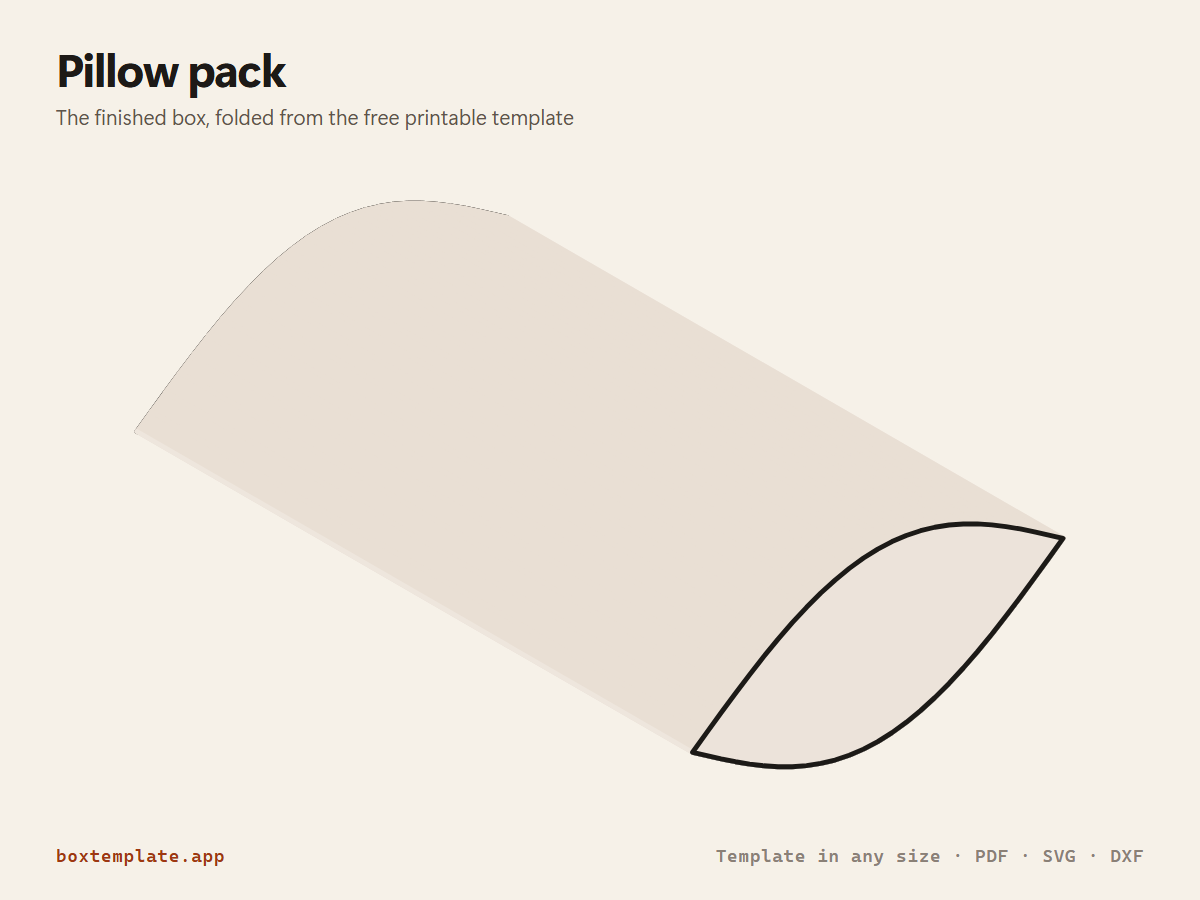

Pillow pack folded up from the template — the finished box
The finished pillow pack, 120 × 80 × 18 mm.

What this template is for

The curved-end pillow box. No glue at the ends at all — the curves lock into each other.

Also called pillow box · curved-end box · pillow pouch

What size pillow pack do I need?

The same pillow pack does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.

UseSize (Length × Width)Holds
Gift card100 × 70 mmA gift or bank card, 86 × 54 mm
Earrings or bracelet120 × 80 mmEarrings on a card, a bracelet or a hair clip
Wedding favour150 × 100 mmA handful of sweets, almonds or a small soap

The pillow pack at a glance

Standard sizeLength × Width × End curve depth: 120 × 80 × 18 mm (4.7 × 3.1 × 0.7 in)
Flat sheet at that size176 × 156 mm (6.9 × 6.1 in)
Prints onA4: one sheet · US Letter: one sheet · A3: one sheet
Biggest on one sheet of A4154 × 103 × 23 mm (6.1 × 4.1 × 0.9 in)
Biggest on one sheet of US Letter159 × 106 × 23 mm (6.3 × 4.2 × 0.9 in)
GlueYes
Drawn forHeavy cardstock, 350–450 gsm / cereal-box card (0.5 mm)

Printing it

At its standard size the pillow pack prints on one sheet of A4 or US Letter. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it

How to put it together

Drawn from the pillow pack template itself; words in capitals are printed on it.

  1. Cut the solid lines

    Solid lines are cuts: inside shapes first.

  2. Score every dashed line

    Dashed lines are folds: score them first so the card does not crack.

  3. (glue)FRONTBACK

    Step by step

    1. Cut the outline. Score the curved end lines gently, following the curve.
    2. Fold the FRONT over onto the BACK and glue the (glue) flap along the side seam. Let it dry.
    3. Push in one pair of curved ends so they spring into shape.
    4. Fill it, then push in the other pair to close it.

Glue: glue stick on paper, PVA on card.

Tip for this one: Glue the side seam, let it dry, then push both curved ends inwards. They will spring into the pillow shape.

Questions about the pillow pack

How does a pillow box close?

Glue only the side seam. Once dry, push both curved ends inwards and they spring into the pillow shape and hold each other shut.

What does the end curve depth change?

How deep the curved ends are, which sets how fat the finished pillow is. About a fifth of the width is a good starting point.

What card works best?

Thin card, around 250 to 300 gsm. Board that is too thick will not curve, and paper that is too thin will not hold the shape.

What size pillow pack do I need for gift card, earrings or bracelet or wedding favour?

Gift card: 100 × 70 mm; Earrings or bracelet: 120 × 80 mm; Wedding favour: 150 × 100 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
