Tetrahedron Box Template
A tetrahedron made from a single flat tube, sealed at right angles top and bottom. One rectangle, four triangular faces.
Tetra pack — change shape
Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.
Advanced settingsunits, flaps, board, paper, lines
Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing
This shape has no 3D view yet. The template is still exact.
This shape's 3D view is only an approximation of the printed sheet, so it shows plain card. Your pictures still print exactly where you placed them on the template.
Drag to turn and tilt it; ctrl + scroll or the + and − buttons zoom.Swipe sideways to turn it. Two fingers tilt and pinch to zoom; full screen lets one finger do everything. Double-tap to reset. The fold starts from the very template you print, so gaps and loose tabs show.
Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.
Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

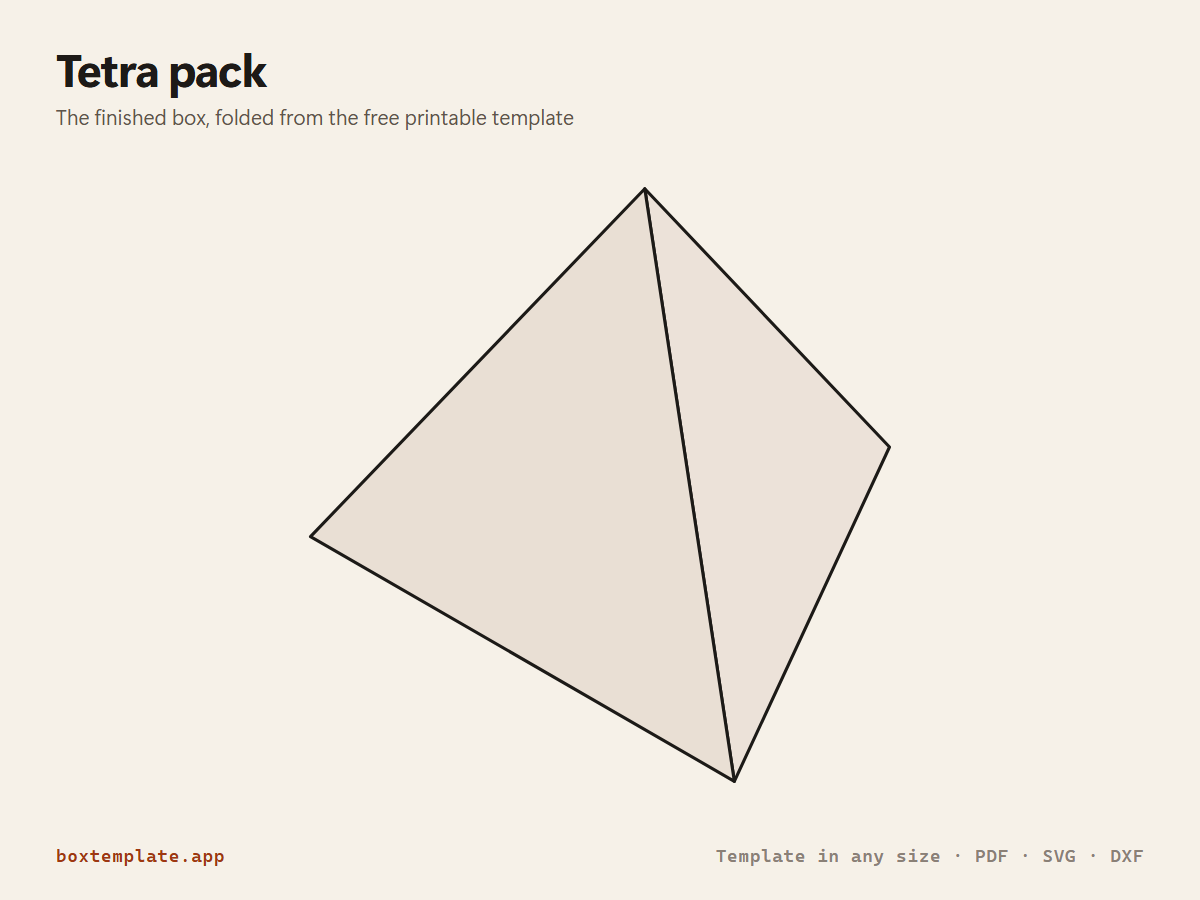

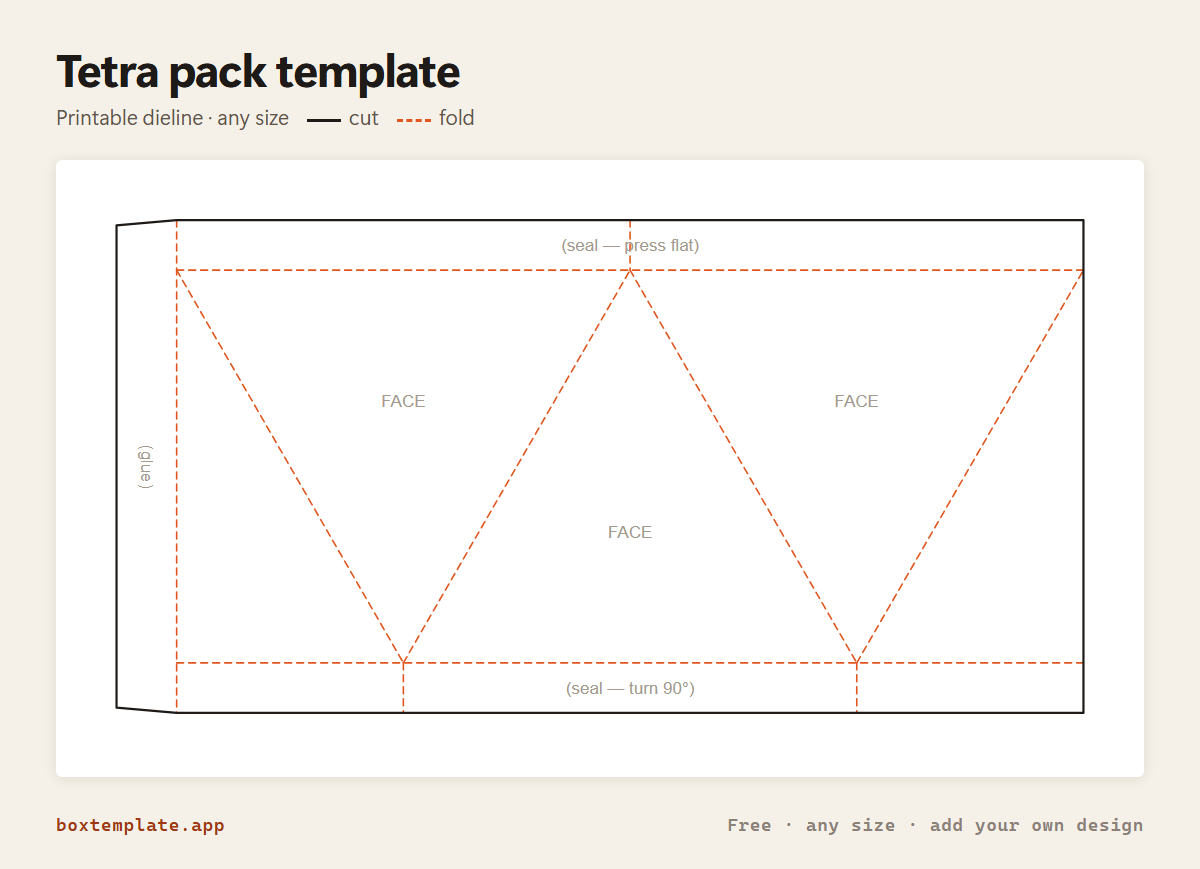

The tetra pack template, flat and folded
What this template is for
A tetrahedron made from a single flat tube, sealed at right angles top and bottom. One rectangle, four triangular faces.
Also called tetrahedron box · tetra-pak style pack · triangular pouch
What size tetra pack do I need?
The same tetra pack does a different job at each size. These are starting sizes for the things people make it for most. Tap one to open the template at that size, then measure your own and change any number to fit.
| Use | Size | Holds |
|---|---|---|
| Favour | 60 mm | A few sweets or nuts |
| Sweets pack | 90 mm | 50–80 g of sweets |
| Big treat pack | 120 mm | Popcorn, crisps or a small toy |
The tetra pack at a glance
| Standard size | Edge length: 90 mm (3.5 in) |
|---|---|
| Flat sheet at that size | 193 × 98 mm (7.6 × 3.9 in) |
| Prints on | A4: one sheet · US Letter: one sheet · A3: one sheet |
| Biggest on one sheet of A4 | 137 mm (5.4 in) |
| Biggest on one sheet of US Letter | 128 mm (5 in) |
| Glue | Yes |
| Drawn for | Heavy cardstock, 350–450 gsm / cereal-box card (0.5 mm) |
Printing it
At its standard size the tetra pack prints on one sheet of A4 or US Letter. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it
How to put it together
Drawn from the tetra pack template itself; words in capitals are printed on it.
-
Cut the solid lines
Solid lines are cuts: inside shapes first.
-
Score every dashed line
Dashed lines are folds: score them first so the card does not crack.
-
Step by step
- Cut the outline in one piece.
- Score the four diagonals and fold each one both ways: they are the edges of the four faces.
- Glue the long (glue) seam into a tube.
- Flatten one end and glue its seal flat.
- Fill it, then flatten the other end at ninety degrees to the first and glue that seal.
Glue: glue stick on paper, PVA on card.
Tip for this one: Score the four diagonals first and fold each one both ways — they are the edges of the four faces, and the shape will not form without them. Then glue the long seam into a tube, flatten and seal one end, and flatten the other end at ninety degrees to the first.
Questions about the tetra pack
How does one rectangle become a tetrahedron?
Glue the long seam to make a flat tube. Seal one end, then turn the other end ninety degrees to the first and seal that. The two seals become opposite edges of the tetrahedron, lying at right angles to each other, and the tube is forced into four triangular faces.
What is the edge length?
The length of one edge of the finished tetrahedron. All six edges are the same on a regular one.
What are the diagonal lines for?
They are the edges where the four faces meet, and they are the whole reason the flat sheet takes the shape. Score all four and fold each one in both directions before you glue anything — the seals sit at right angles to one another, so the creases have to run diagonally rather than straight across.
How do I seal the ends?
Glue, staple or a strip of tape all work. The seal band is the flat strip at each end of the rectangle.
What size tetra pack do I need for favour, sweets pack or big treat pack?
Favour: 60 mm; Sweets pack: 90 mm; Big treat pack: 120 mm. These are starting sizes; measure what goes inside and add a few millimetres of room.
