Counter Display Box Template

A shop counter tray: low at the front so the goods show, tall at the back for a printed header, with the sides ramped between the two.

Counter display — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

The counter display template, flat and folded

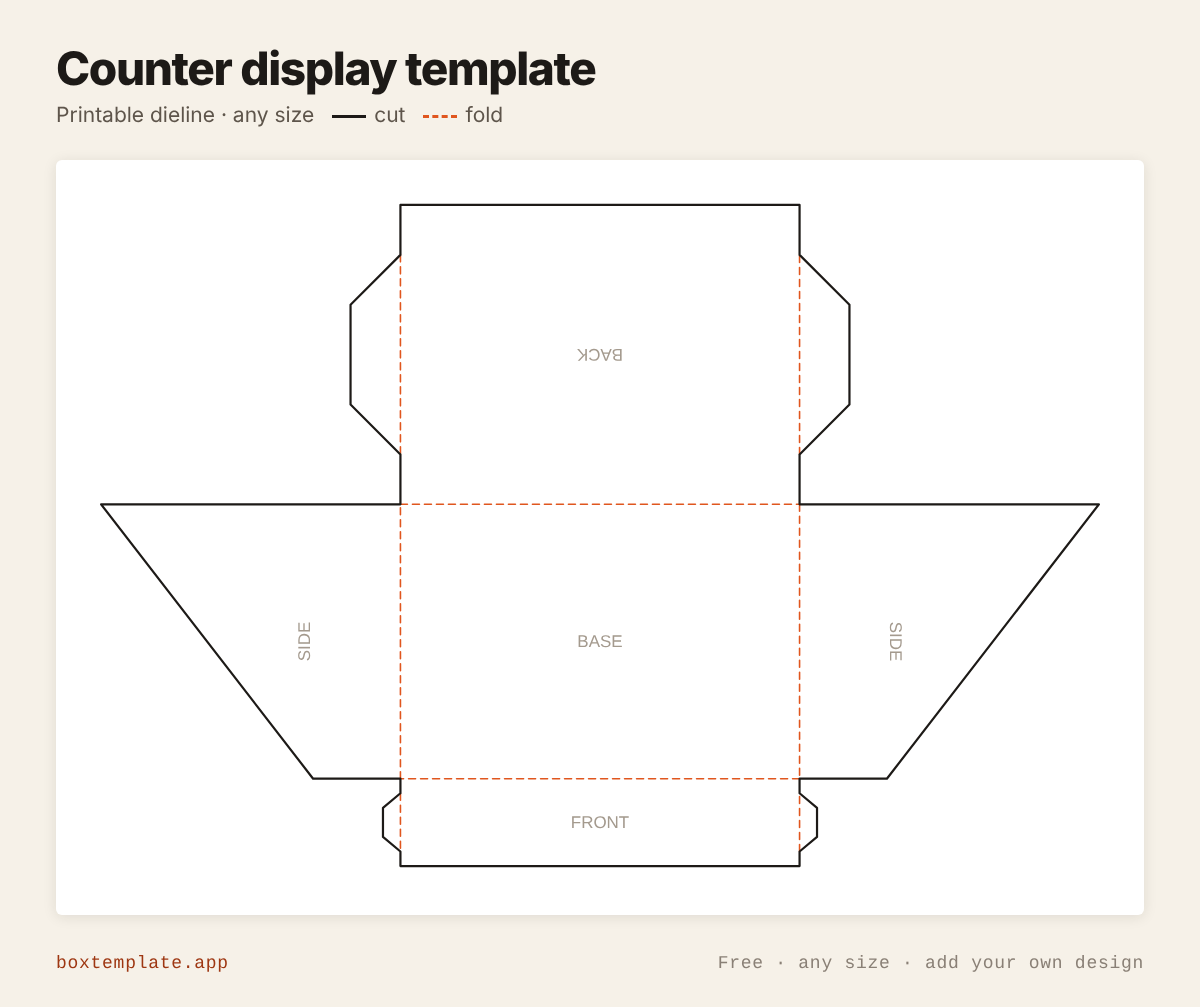

Counter display template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size. Type your own size above for yours.

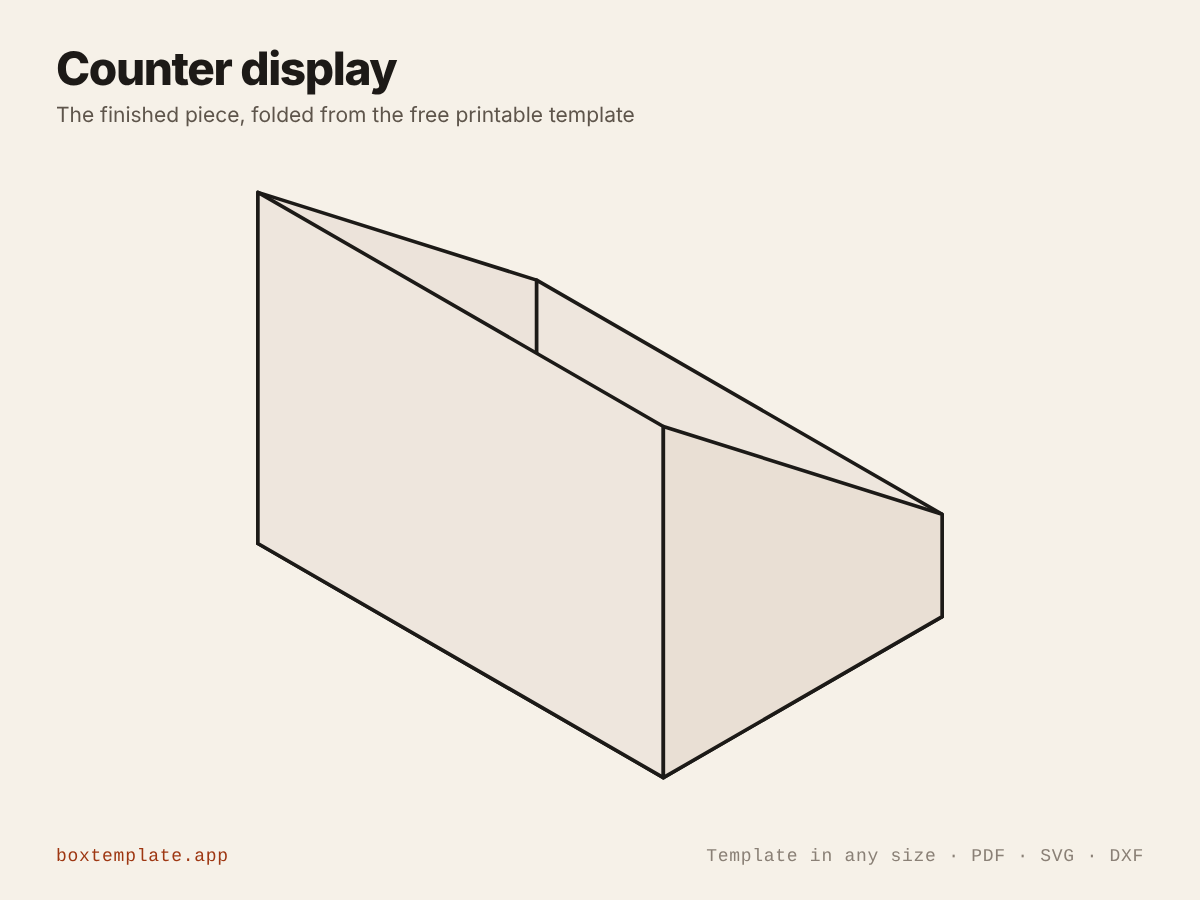

Counter display folded up from the template — the finished piece
The finished counter display, made from it.

What this template is for

A shop counter tray: low at the front so the goods show, tall at the back for a printed header, with the sides ramped between the two.

Also called counter display unit · PDD tray · point of sale tray · display tray — all the same shape, and this is it.

How to use this template

All four downloads are the same counter display at the same size — only the format changes.

PDF printing at home
Print at 100 per cent, or hand it to a print shop as "actual size, no scaling".
PNG 300 dpi Canva, Photoshop, Procreate
Upload, lock it in place and design your counter display on top. Free plan and phone included. Full Canva walkthrough →
SVG Cricut, Illustrator, Inkscape, Affinity
Vector, with cuts, folds and labels on separate layers. Cricut and Silhouette walkthrough →
DXF Silhouette, laser and vinyl cutters
Two layers, CUT and FOLD — and the one free Silhouette Studio Basic will open.

Getting it printed properly →

Printing it

  1. Type your size above, then download the PDF.
  2. Print at 100% — never “fit to page”, or every measurement comes out wrong.
  3. Too big for the paper? Pick your paper size and leave Fit the pieces to the page ticked: each piece gets its own place on a sheet and the PDF comes out with every page in it, nothing cut in half and nothing to tape.

How to put it together

These pictures are the counter display itself, not a generic diagram — change the measurements above and the template changes, but the three steps never do.

  1. Cut the solid lines

    Every solid line is a cut. Do the inside shapes first, while the sheet is still whole and easy to hold.

  2. Score every dashed line

    Dashed lines are folds. Score each one first — an empty ballpoint against a ruler — or the card cracks along the outside of the bend.

  3. BASEBACKFRONTSIDESIDE

    Fold, glue and hold

    Fold the base edges up. The back and front walls carry the tabs — glue each one to the inside of the ramped side wall next to it.

Glue: a glue stick for paper, white PVA on card — hold each seam thirty seconds, and let it dry before you use it.

Questions about the counter display

What is a counter display unit?
A shallow tray with a low front wall so the goods show, and a tall back panel that carries the printing. The trade name is a PDD or counter display unit, and it is what sits by a till holding lip balms or chocolate bars.
Why are the sides sloped?
They ramp from the low front up to the tall back so the box has no exposed corner and the whole front of the contents stays visible. The slope comes straight from the two heights you set.
How do I get my design on the back panel?
Add a picture in the Artwork panel and drag it over the back wall of the drawing. It is trimmed to the cut outline, so nothing prints off the board.

Print your own design on it

Add a logo, photo or pattern in the panel on the left and drag it onto the counter display. It is trimmed to the cut outline, embedded properly in the PDF, and never leaves your computer — most free template sites hand you the outline and stop there. How printing your own design works.
