Diagonal Cut Box Template — Free Angled Cuff Gift Box, Any Size

The diagonal cut box template, flat and folded

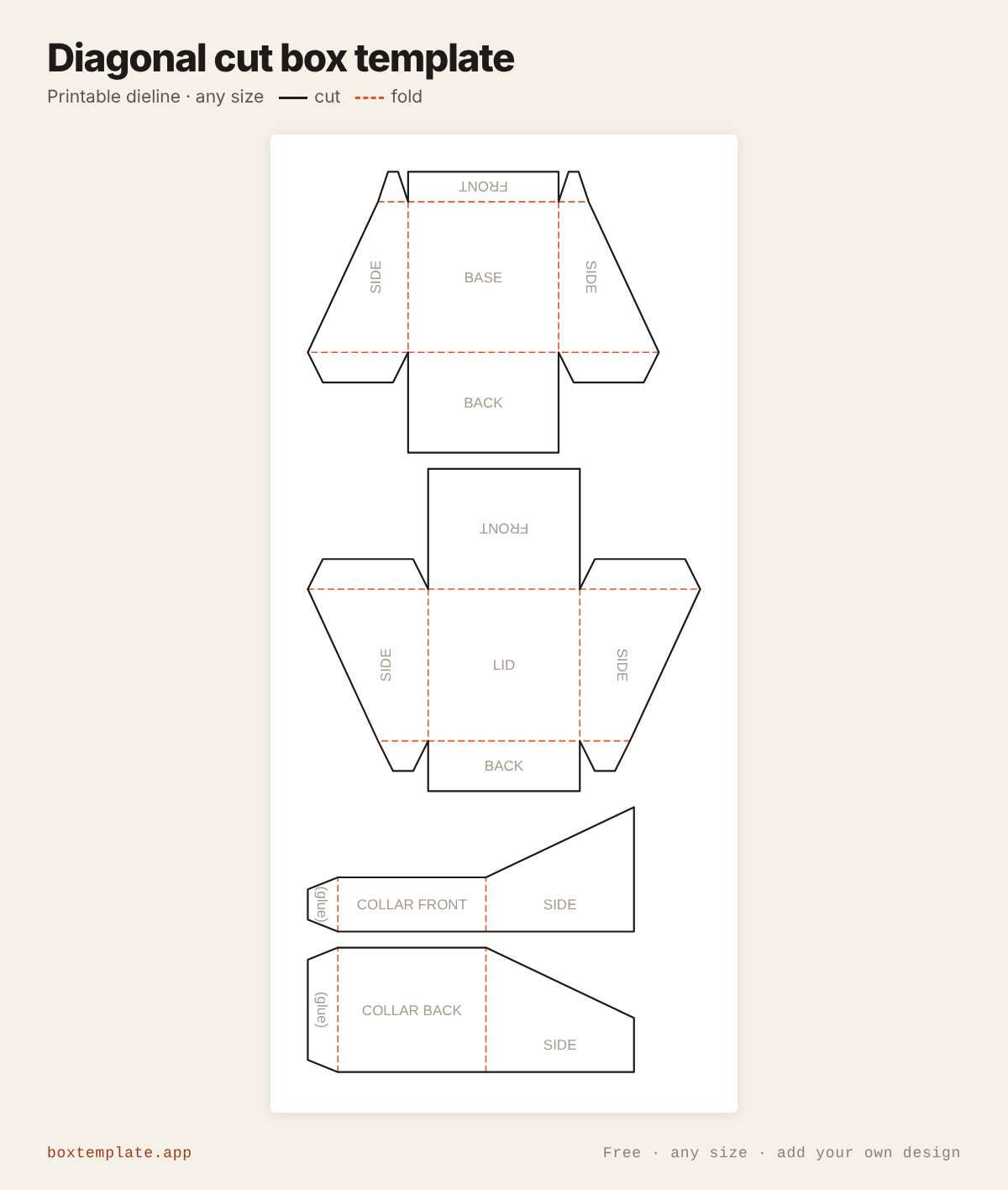

Diagonal cut box template — free printable dieline with cut and fold lines, any size — The printable dieline at its standard size. Type your own size above for yours.

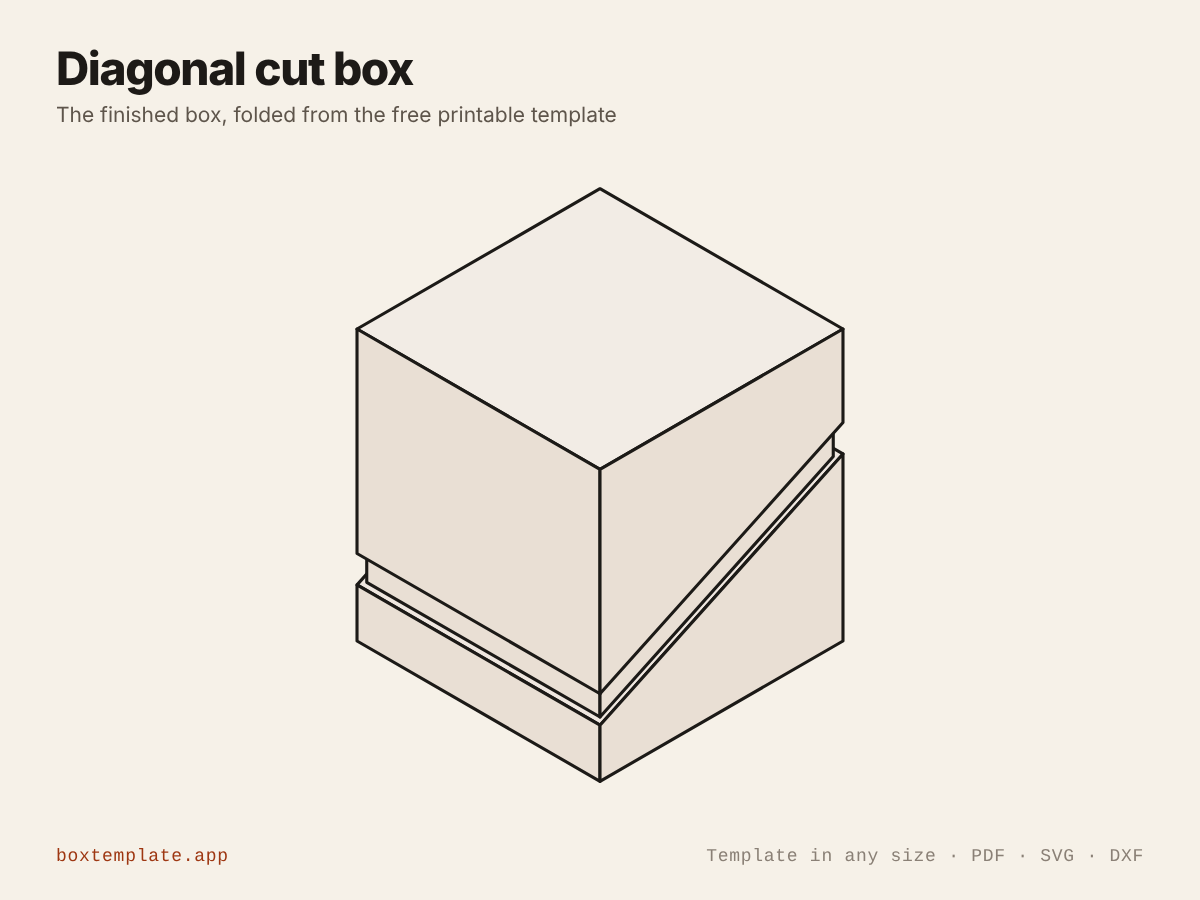

Diagonal cut box folded up from the template — the finished box — The finished diagonal cut box, made from it.

What this template is for

A box split along a slant: the base is low at the front and high at the back, and the lid slides down over a collar to close it into one block with a diagonal seam. Rings, watches and perfume, jewellery and premium gifts.

Also called angled cuff box · slanted lid box · diagonal box · angled lid gift box — all the same shape, and this is it.

Ring, watch and bracelet boxes
Perfume and cosmetics boxes
Premium and luxury gift packaging
Wedding and proposal boxes

How to use this template

All four downloads are the same diagonal cut box at the same size — only the format changes.

Which file goes where: PDF, PNG, SVG or DXF

PDF printing at home: Print at 100 per cent, or hand it to a print shop as "actual size, no scaling".
PNG 300 dpi Canva, Photoshop, Procreate: Upload, lock it in place and design your diagonal cut box on top. Free plan and phone included. Full Canva walkthrough →
SVG Cricut, Illustrator, Inkscape, Affinity: Vector, with cuts, folds and labels on separate layers. Cricut and Silhouette walkthrough →
DXF Silhouette, laser and vinyl cutters: Two layers, CUT and FOLD — and the one free Silhouette Studio Basic will open.

Getting it printed properly → · Putting your own design on it →

Printing it

Type your size above, then download the PDF.
Print at 100% — never “fit to page”, or every measurement comes out wrong.
Too big for the paper? Pick your paper size and leave Fit the pieces to the page ticked: each piece gets its own place on a sheet and the PDF comes out with every page in it, nothing cut in half and nothing to tape.

How to put it together

These pictures are the diagonal cut box itself, not a generic diagram — change the measurements above and the template changes, but the three steps never do.

Cut the solid lines
Every solid line is a cut. Do the inside shapes first, while the sheet is still whole and easy to hold.
Score every dashed line
Dashed lines are folds. Score each one first — an empty ballpoint against a ruler — or the card cracks along the outside of the bend.
Fold, glue and hold
Score every dashed line. Fold the walls of the BASE up and glue each side wall's end tabs inside the front and back. Glue the two COLLAR halves into a ring, then glue it inside the base, its bottom on the floor, so it stands above the slanted edge all round. Make the LID the same way as the base and slide it down over the collar.

Glue: a glue stick for paper, white PVA on card — hold each seam thirty seconds, and let it dry before you use it.

Questions about the diagonal cut box

How does the lid stay on?

A collar is glued inside the base and stands 12 mm above the slanted edge all the way round. The lid is the collar plus a 0.6 mm clearance inside, so it slides down over the collar and rests on the base, and the outside looks like one block cut on the diagonal.

How steep is the cut?

You set the base height at the front and at the back: 15 mm and 50 mm on the default 75 mm cube. The back is at least 10 mm higher than the front so the cut slants, and low enough that the lid still covers the collar; the page says if it has moved them.

How many pieces are there?

Four: the base, the lid and the collar in two halves, so every piece fits an A4 or US Letter sheet. Each half of the collar is a straight panel and a side, and glues to the other half by its tab.
