Gem Box Template

A cut gem: a crown of facets above the girdle and a pavilion below it, in two pieces that meet in the middle. Jewellery packaging, party favours, decorations.

Gem stone box — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

The gem stone box template, flat and folded

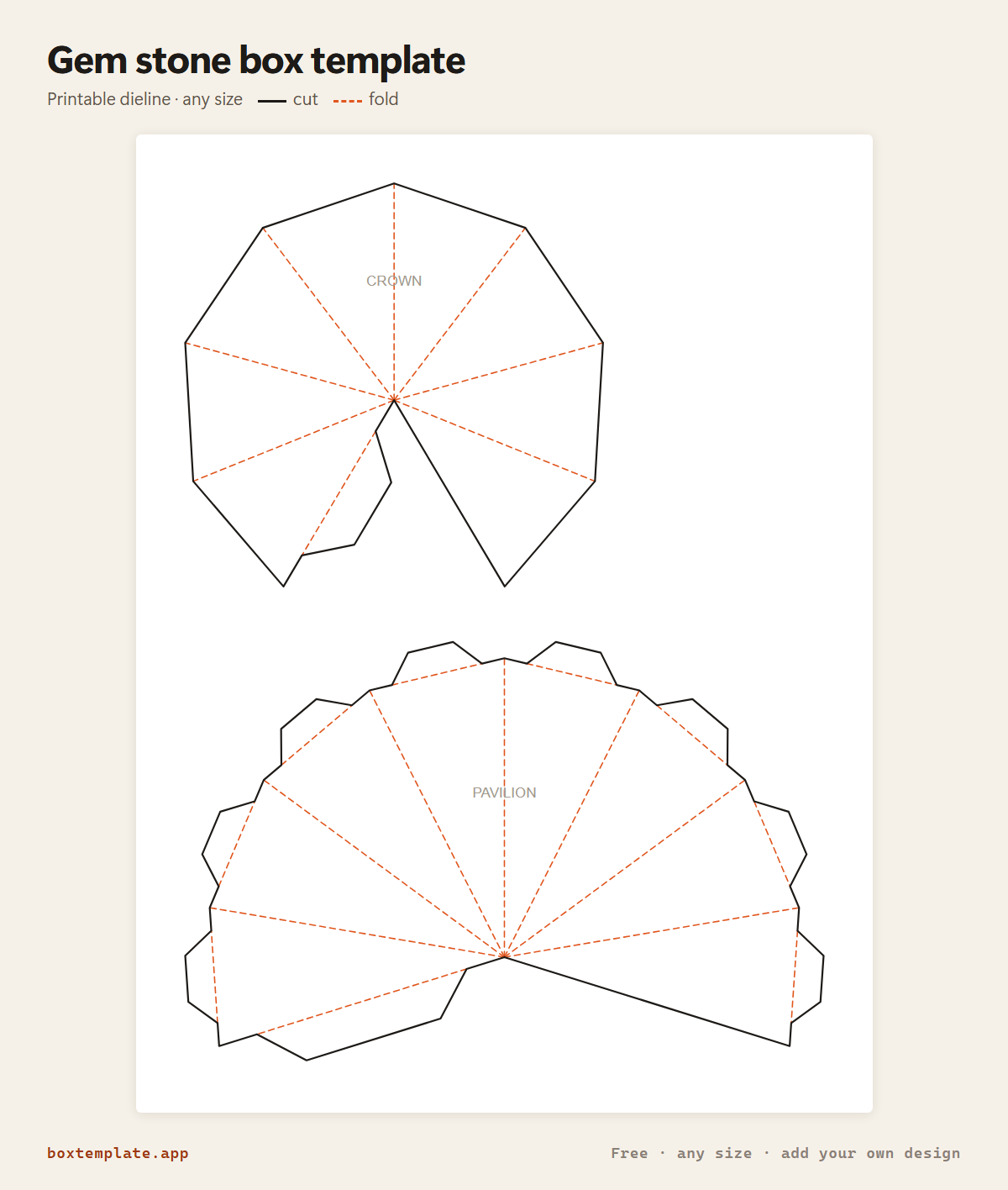

Gem stone box template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size. Type your own size above for yours.

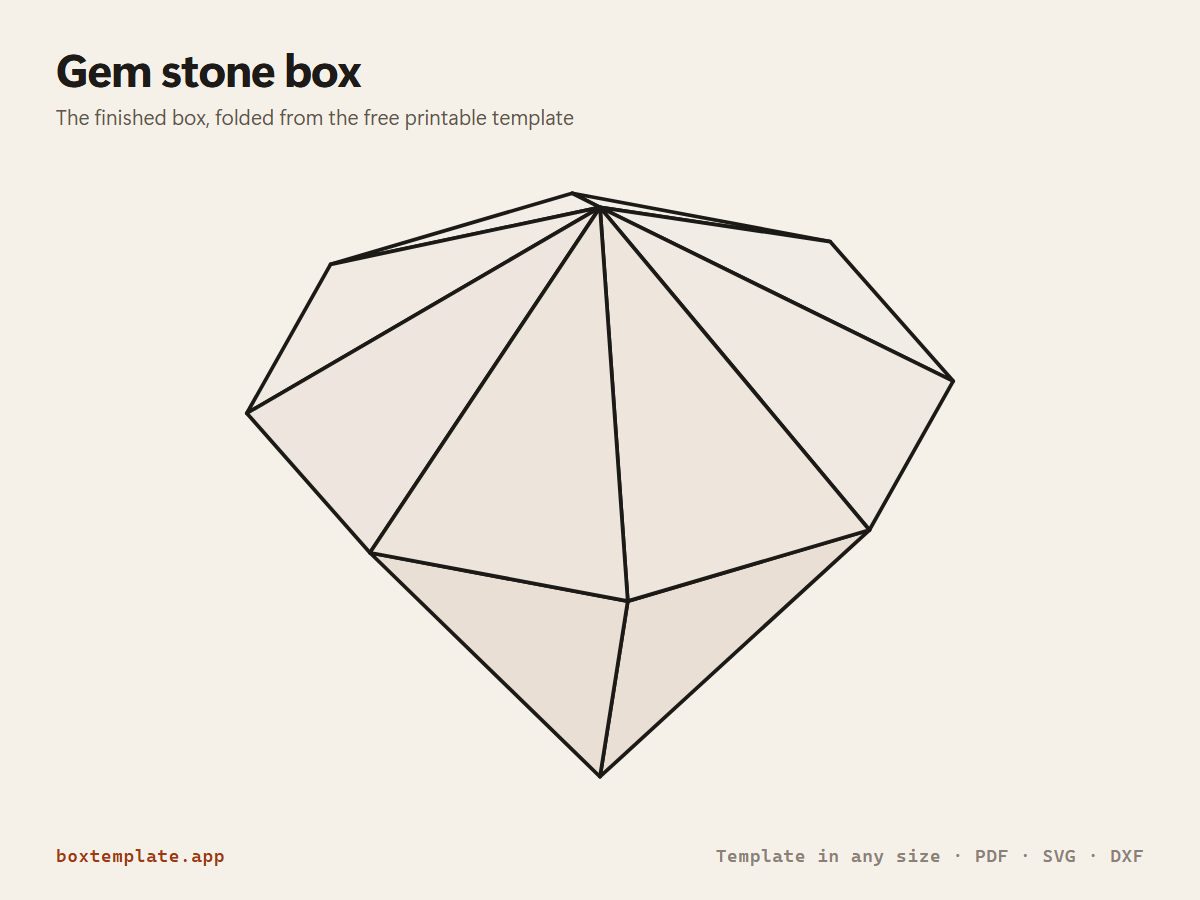

Gem stone box folded up from the template — the finished box
The finished gem stone box, made from it.

What this template is for

A cut gem: a crown of facets above the girdle and a pavilion below it, in two pieces that meet in the middle. Jewellery packaging, party favours, decorations.

Also called diamond box · gem box · faceted box · crystal box — all the same shape, and this is it.

How to use this template

All four downloads are the same gem stone box at the same size — only the format changes.

PDF printing at home
Print at 100 per cent, or hand it to a print shop as "actual size, no scaling".
PNG 300 dpi Canva, Photoshop, Procreate
Upload, lock it in place and design your gem stone box on top. Free plan and phone included. Full Canva walkthrough →
SVG Cricut, Illustrator, Inkscape, Affinity
Vector, with cuts, folds and labels on separate layers. Cricut and Silhouette walkthrough →
DXF Silhouette, laser and vinyl cutters
Two layers, CUT and FOLD — and the one free Silhouette Studio Basic will open.

Getting it printed properly →

Printing it

  1. Type your size above, then download the PDF.
  2. Print at 100% — never “fit to page”, or every measurement comes out wrong.
  3. Too big for the paper? Pick your paper size and leave Fit the pieces to the page ticked: each piece gets its own place on a sheet and the PDF comes out with every page in it, nothing cut in half and nothing to tape.

How to put it together

These pictures are the gem stone box itself, not a generic diagram — change the measurements above and the template changes, but the three steps never do.

  1. Cut the solid lines

    Every solid line is a cut. Do the inside shapes first, while the sheet is still whole and easy to hold.

  2. Score every dashed line

    Dashed lines are folds. Score each one first — an empty ballpoint against a ruler — or the card cracks along the outside of the bend.

  3. CROWNPAVILION

    Fold, glue and hold

    Roll each half into a point and glue its seam tab. Let both dry, fill the pavilion, then fold the rim tabs in and set the crown on them. Glue it down for a keepsake that stays shut; leave it unglued and the crown lifts off like a lid, resting on the rim tabs, so the gem can be opened and used again.

Glue: a glue stick for paper, white PVA on card — hold each seam thirty seconds, and let it dry before you use it.

Questions about the gem stone box

How does the gem go together?
It prints as two fans of facets. Each one rolls up into a point and is glued along its own seam, giving you a crown and a pavilion. Fill the pavilion, then glue the crown onto its rim tabs.
Why does the tool sometimes say to tape the seam?
A very shallow set of facets uses up nearly the whole circle of paper, and then there is no wedge of card left for a glue tab to lie in — it would fold back over the last facet. Tape that seam on the inside, or make the gem taller.
How many facets should I use?
Six or eight looks most like a cut stone. Above about ten the facets get so narrow that the folds are hard to crease cleanly in card.

Print your own design on it

Add a logo, photo or pattern in the panel on the left and drag it onto the gem stone box. It is trimmed to the cut outline, embedded properly in the PDF, and never leaves your computer — most free template sites hand you the outline and stop there. How printing your own design works.
