Bow Top Box Template

A square box whose walls carry on into four tall flaps. One ribbon through the holes pulls them together and ties in a bow — the ribbon is the lid. Favours, sweets, small gifts.

Bow-top box — change shape

Size mm
Only here Your own design

Put a logo, photo or pattern straight onto the box — most free template sites give you the outline and stop there. Drag it where you want it; it is trimmed to the cut lines so nothing prints off the card, and it stays in your browser.

Advanced settingsunits, flaps, board, paper, lines
Units
Shape settings
Page

Bigger than the paper? Each piece prints whole on its own sheet. A single piece is never split: pick bigger paper or a smaller size. More about printing

Template

cutfold

Drop a picture anywhere on the drawingTap “Add a picture” below to print your own design on this box.

Print at 100% (“actual size”), never “fit to page”, or the box comes out the wrong size.

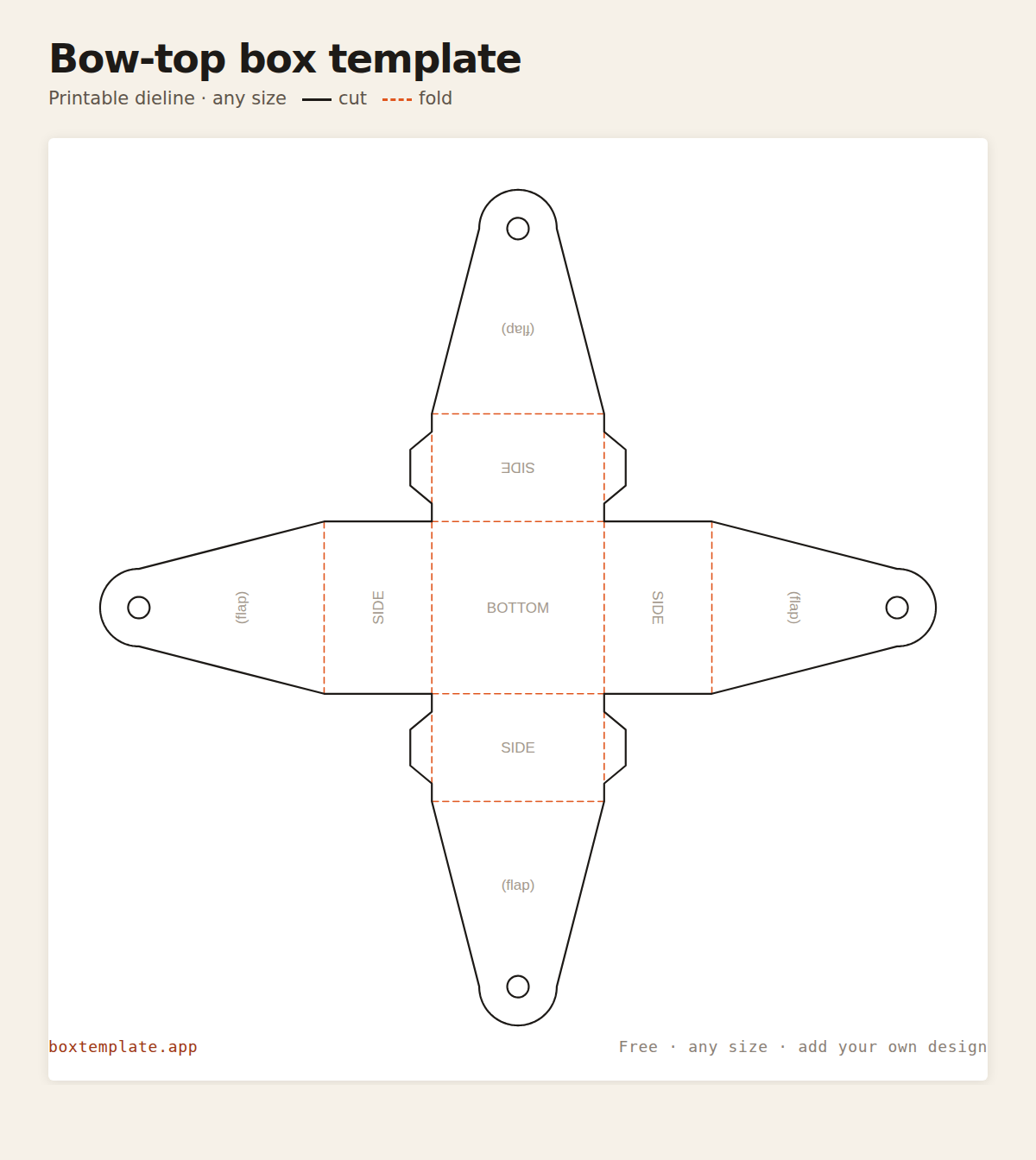

The bow-top box template, flat and folded

Bow-top box template — free printable dieline with cut and fold lines, any size
The printable dieline at its standard size: 194 × 194 mm flat.

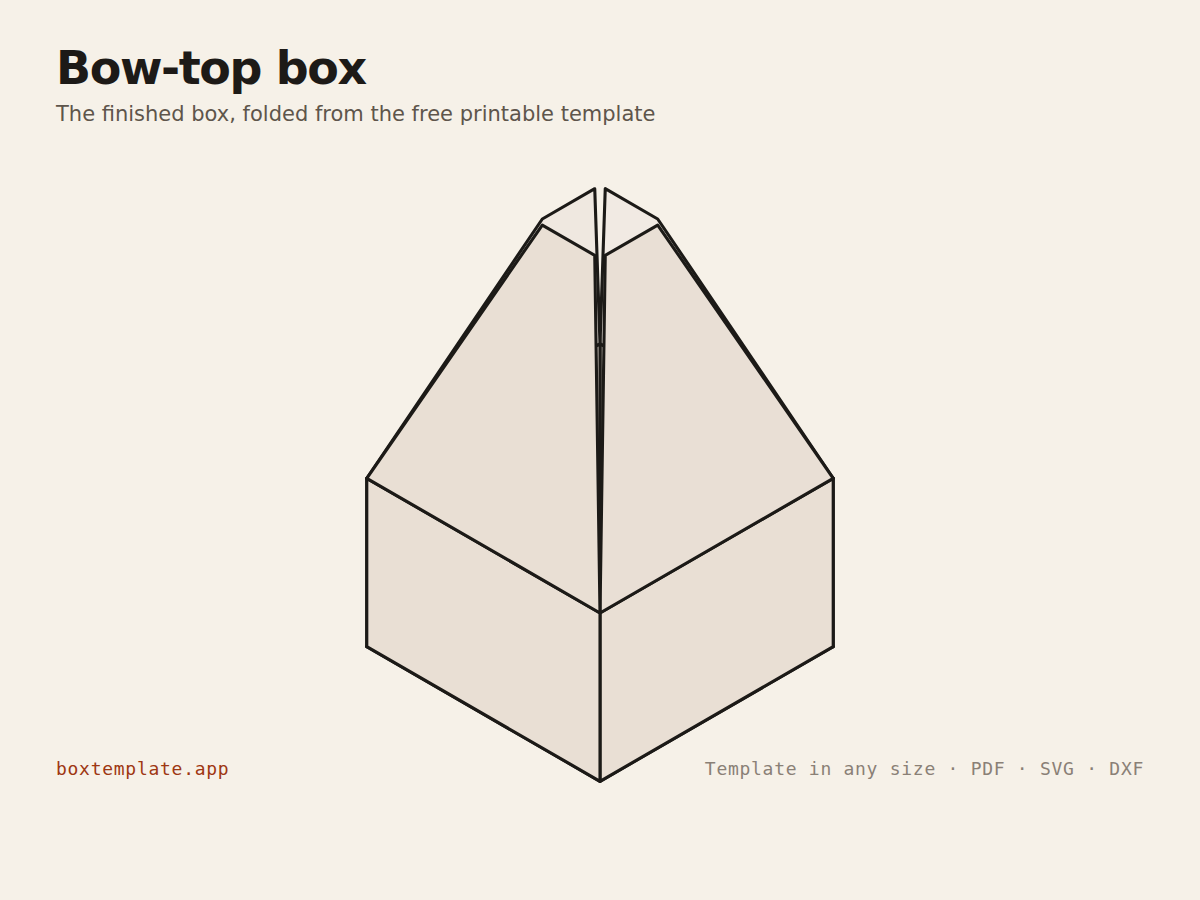

Bow-top box folded up from the template — the finished box
The finished bow-top box, 40 × 25 mm.

What this template is for

A square box whose walls carry on into four tall flaps. One ribbon through the holes pulls them together and ties in a bow — the ribbon is the lid. Favours, sweets, small gifts.

Also called ribbon tie box · bow box · gathered top favour box · drawstring gift box

  • Wedding and party favours
  • Sweets, mithai and chocolates
  • Christmas and Diwali gifts
  • Craft fair and small-shop packaging

The bow-top box at a glance

Standard sizeBox width × Height: 40 × 25 mm (1.6 × 1 in)
Flat sheet at that size194 × 194 mm (7.6 × 7.6 in)
Prints onA4: one sheet · US Letter: one sheet · A3: one sheet
Biggest on one sheet of A443 × 26 mm (1.7 × 1 in)
Biggest on one sheet of US Letter45 × 28 mm (1.8 × 1.1 in)
GlueYes
Drawn forHeavy cardstock, 350–450 gsm / cereal-box card (0.5 mm)

Printing it

At its standard size the bow-top box prints on one sheet of A4 or US Letter. Whatever the size, print at 100% (“actual size”), never “fit to page”. Printing it right · Cricut and Silhouette · Designing it in Canva · Your own picture on it

How to put it together

Drawn from the bow-top box template itself; words in capitals are printed on it.

  1. Cut the solid lines

    Solid lines are cuts: inside shapes first.

  2. Score every dashed line

    Dashed lines are folds: score them first so the card does not crack.

  3. SIDE(flap)SIDE(flap)SIDE(flap)SIDE(flap)BOTTOM

    Step by step

    1. Cut the outline and punch the ribbon hole in each (flap).
    2. Fold the four SIDE walls up from the BOTTOM and glue each corner tab inside the wall beside it.
    3. Fill the box.
    4. Thread a ribbon through the four holes, pull the flaps together over the middle and tie a bow.

Glue: glue stick on paper, PVA on card.

Tip for this one: Fold the walls up and glue each corner tab inside the wall beside it. Fill the box, then thread a ribbon through the four holes, pull the flaps together over the middle and tie a bow.

Questions about the bow-top box

How does it close?

With the ribbon. Each wall carries on up into a long flap with a round tip and a hole in it. Fill the box, thread one ribbon through all four holes, pull the flaps together over the middle and tie a bow. There is no lid and no tuck: the ribbon holds the flaps together, and untying it opens the box again.

Why does it sometimes make my flaps longer?

So the holes can meet. Bent over, each flap has to reach at least half the box width from the fold before its hole is over the middle. If the flap length you type is shorter than that, the tool lengthens it and says what it used, rather than drawing a box whose ribbon cannot pull shut.

Will it print on one sheet?

At the size it opens with, yes: a 45 mm box comes to 191 × 191 mm, which fits A4 and US Letter with room for the margin a home printer cannot reach. It is one piece shaped like a cross, so a bigger box needs a bigger sheet, or use Make it smaller to fit.

What ribbon and card should I use?

Card of 200 to 250 gsm, so the flaps stand up rather than flop. Any ribbon that passes through the holes works; set the hole diameter to suit it, around 5 mm for a narrow satin ribbon. Punch or cut the holes before you fold anything.
